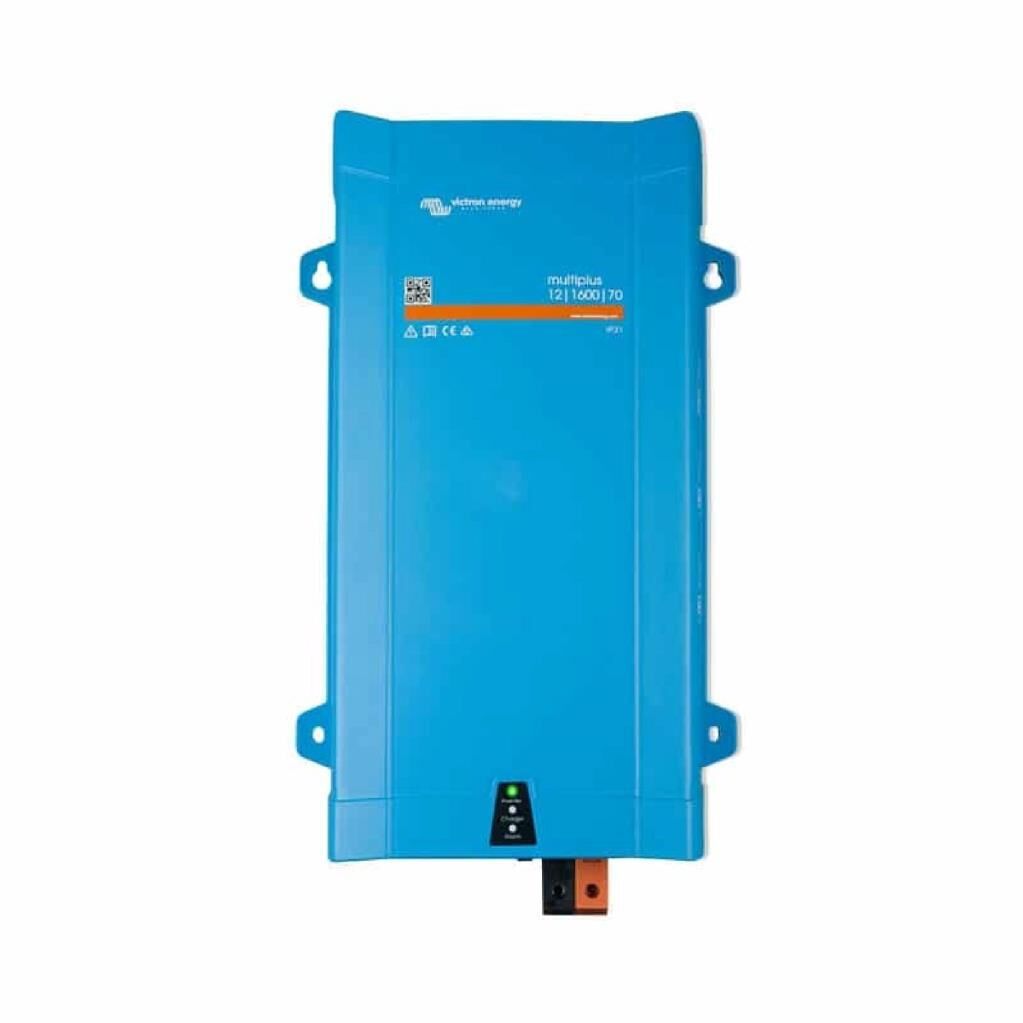

Victron MultiPlus 12/1600/70-16 İnvertör/Şarj Cihazı PMP122160000
Victron Energy MultiPlus 12/1600/70-16 1600VA Inverter/Charger PMP122160000
Input Voltage | Output Power | Peak Power | Transfer Key | Charge AC Input | Charger | Dimensions | Weight |
12 Vdc | 230VAC, Frequency 50 Hz | 2800W | 16 A | 187-265 VAC | 70 A | 470 x 265 x 120mm | 10,2 Kg |
The new style Multiplus has been developed to replace the previous Multiplus Compact range. It houses a powerful true sine wave inverter, a sophisticated battery charger with adaptive charging technology, and a high-speed AC transfer switch all in one compact enclosure.
Models:
500VA, 800VA, 1200VA, 1600VA
Uninterrupted AC power (UPS function)
In the event of a grid failure or shore or generator power outage, the inverter inside the Multi automatically kicks in and carries the supply to the connected loads. This process is done so quickly (less than 20 milliseconds) that your computers and other electronic equipment continue to operate without interruption.
Remote Monitoring and Control
Monitor and control your Quattro device and system or systems locally (LAN) or over the internet from anywhere in the world using the free VRM app and VRM portal website. For multiple operating systems, access is available from a phone, tablet, laptop or computer. Via the required Color Control GX or Venus GX interface, there is no limit to the level of control, from setting up your Quattro to setting a geofence for rental cars and more…
Proven reliability
The full bridge and toroidal transformer topology has proven its reliability over many years. The inverter is protected against short circuit, as well as overheating due to overload or high ambient temperature.
PowerControl - Dealing with limited generator, shore-side or mains power
Thanks to the Multi Control Panel, you can set the maximum generator or shore current. Taking into account other AC loads, the MultiPlus uses all available extras for charging and prevents overloading of the generator or shore supply.
PowerAssist – Increases shore or generator power capacity
Where peak power is usually only required for a limited time, the MultiPlus ensures that insufficient shore or generator power is immediately compensated by battery power. When the load is low, backup power is used to recharge the battery.
High starting power
It is required to start high inrush loads such as LED, lamps, halogen lamps or power converters of electric vehicles.
Look in
When Search Mode is "on", the inverter's no-load power consumption drops by about 70%. In this mode, the Multi is turned off at no load or at very low load when operating in inverter mode and turns on briefly every two seconds. If the output current exceeds the set level, the inverter continues to run. If it does not exceed, the inverter turns off again.
programmable relay
By default, the programmable relay is set as alarm relay, that is, in case of alarm or pre-alarm (inverter almost too hot, input ripple almost too high, battery voltage almost too low), the relay will be de-energized.
