Victron MPPT Kontrol Ekranı SCC900500000

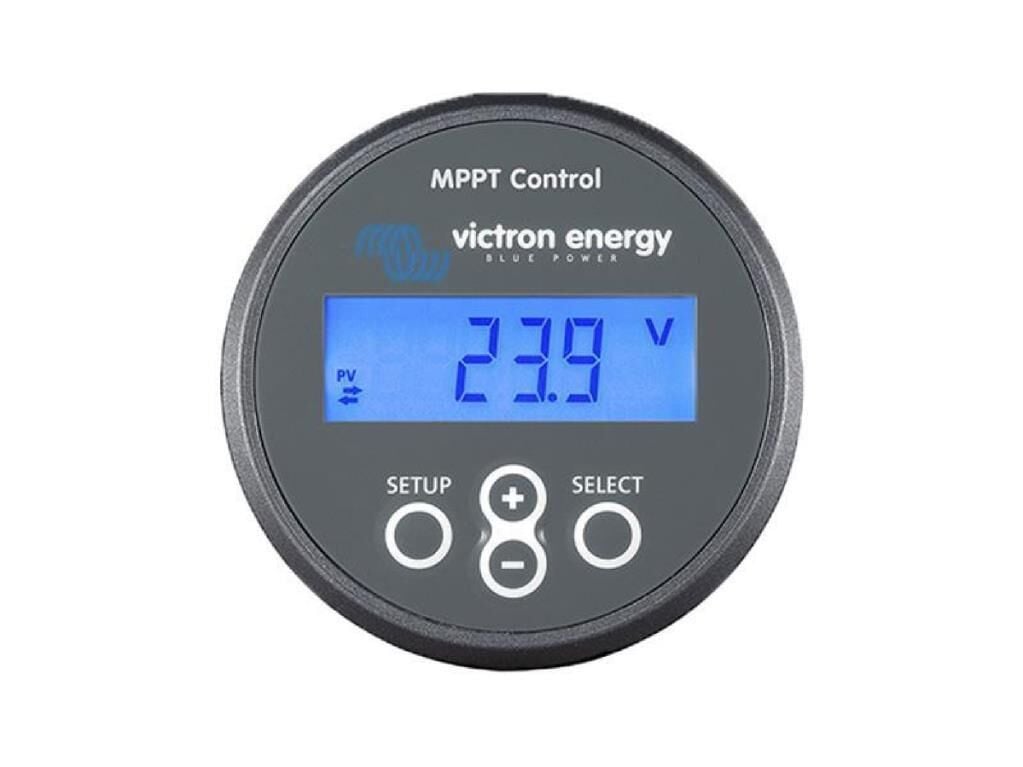

Victron MPPT Control Display SCC900500000
(VE.Direct cable not included.)
With MPPT Control you can view status and set up all BlueSolar MPPT Charge Controllers with VE.Direct communication port. The MPPT Control is mounted on the BMV-700 series sockets you are using, allowing you to monitor your panel and system monitoring equipment in a consistent and professional manner.
Check out our user and installation guide and the MPPT Control blog post for more information .
Use one of our wall mount enclosures to easily wall mount the MPPT Control instead of flush mount.
Features
1. You can view live status information, including solar power, battery voltage, charging current, load current and more.
2. You can view the following history information
A. All-time values
B. Values of 30 days history
3. MPPT setup
Features
Electrical | |
Supply voltage range when powered from battery | 6.5 - 95Vdc |
Supply voltage range when powered via VE.Direct cable | 5Vdc |
Power consumption with back-light turned off | < 0.05W |
Operating temperature range | -20 - +50°C (0 - 120°C) |
Power cable fuse rating | 100mA |
Mechanical | |
Installation type | flush mount |
front diameter | 63mm (2.5") |
Front bezel | 69 x 69mm (2.7x2.7") |
Body diameter | 52mm (2.0") |
body depth | 31mm (1.2") |
Power cable length | 1.5m |
weight | 50g |
suitability |
Suitable for the entire Victron Energy BlueSolar MPPT and the SmartSolar MPPT solar charger range, with the exception of the (since long) discontinued BlueSolar MPPT 70/15. |
