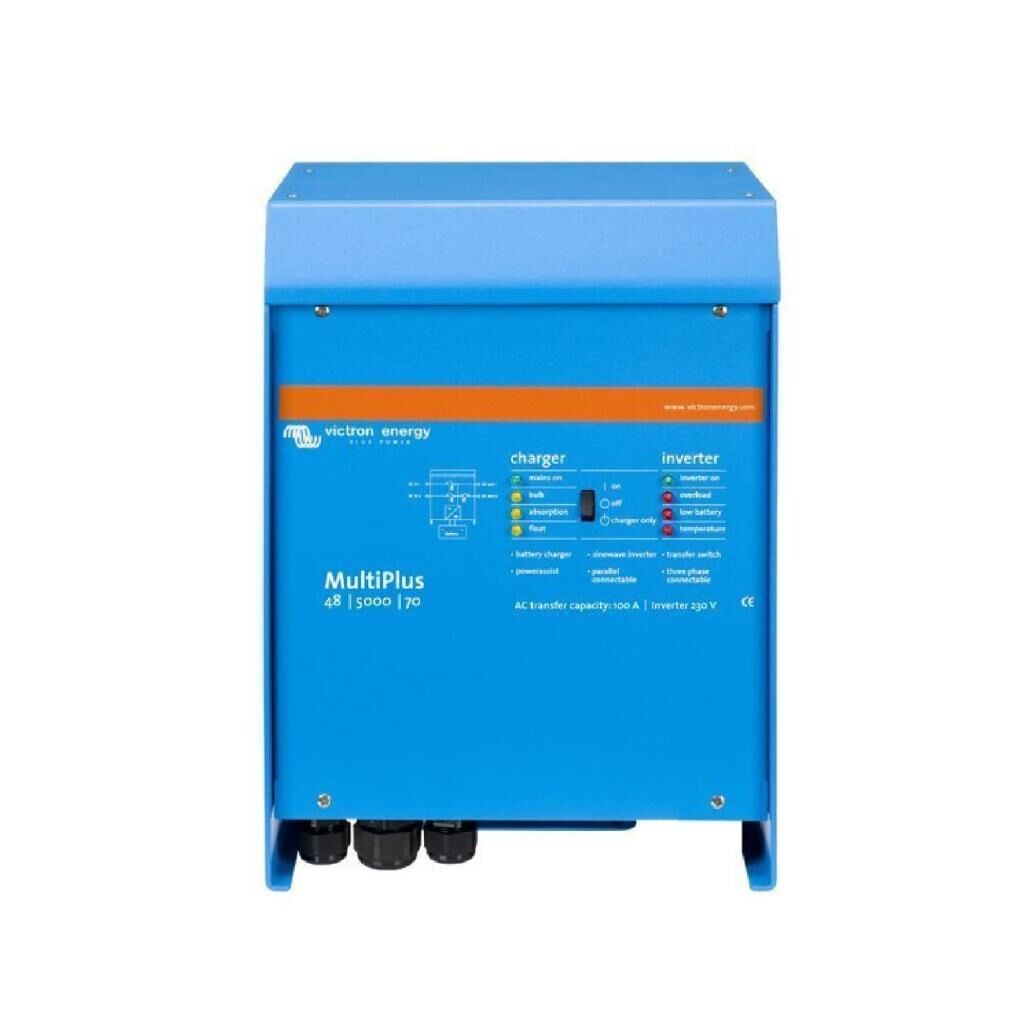

Victron Enerji MultiPlus İnvertör Şarj Cihazı 5000VA-48-5000-70-100

MultiPlus Inverter/Charger 800 VA – 5 kVA Lithium Ion battery compatible

Unique PowerAssist feature

The MultiPlus prevents overloading of a limited AC source such as a generator or shore power connection. First, the battery charge automatically drops in situations that could cause an overload. The second level increases the output of a generator or shore-side supply with power from the battery.

Uninterrupted AC power (UPS function)

In the event of a grid failure or shore or generator power outage, the inverter inside the Multi automatically kicks in and carries the supply to the connected loads. This process is done so quickly (less than 20 milliseconds) that your computers and other electronic equipment continue to operate without interruption.

Virtually unlimited power thanks to parallel working capacity

Up to 6 units of the Multi can run in parallel providing higher power output. Three-phase or split-phase operation is also possible. Please check our datasheet to see which models have parallel, three-phase and split-phase capacities.

Remote Monitoring and Control

Monitor and control your Quattro device and system or systems locally (LAN) or over the internet from anywhere in the world using the free VRM app and VRM portal website. For multiple operating systems, access is available from a phone, tablet, laptop or computer. Via the required Color Control GX or Venus GX interface, there is no limit to the level of control, from setting up your Quattro to setting a geofence for rental cars and more…

Two AC Outputs
The main power outlet has the uninterruptible function. MultiPlus starts to supply energy to the connected loads in case of mains failure or shore/generator power failure. This process is done so quickly (in less than 20 milliseconds) that your computers and other electronic equipment continue to operate without interruption. The second power output only works when AC is present at the MultiPlus power input. Loads that should not discharge the battery, such as a water heater, can be connected to this output (second output is available in models of 3 kVA and above).

Virtually unlimited power thanks to parallel working capacity
Up to 6 units of the Multi can run in parallel providing higher power output. For example, six 24/5000/120 units offer 25 kW / 30 kVA output power and 720 Amp charging capacity.

Three-phase output possibility
In addition to parallel connection, three units of the same model can be configured for three-phase output. But that's not all: Up to 6 sets of three units can be connected in parallel for a massive 75 kW / 90 kVA inverter and 2000 Amp charging capacity.

PowerControl Dealing with limited generator, shore-side or mains power
MultiPlus is a very powerful battery charger. It therefore draws a lot of current from the generator or shore supply (approximately 10 A per 5 kVA Multi at 230 VAC). Thanks to the Multi Control Panel, you can set the maximum generator or shore current. Taking into account other AC loads, the MultiPlus uses all available extras for charging and prevents overloading of the generator or shore supply.

PowerAssist - Increases shore or generator power capacity
This feature takes the PowerControl principle to another dimension. Allows MultiPlus to support alternate source capacity. Where peak power is usually only required for a limited time, the MultiPlus ensures that insufficient shore or generator power is immediately compensated by battery power. When the load is low, backup power is used to recharge the battery.
