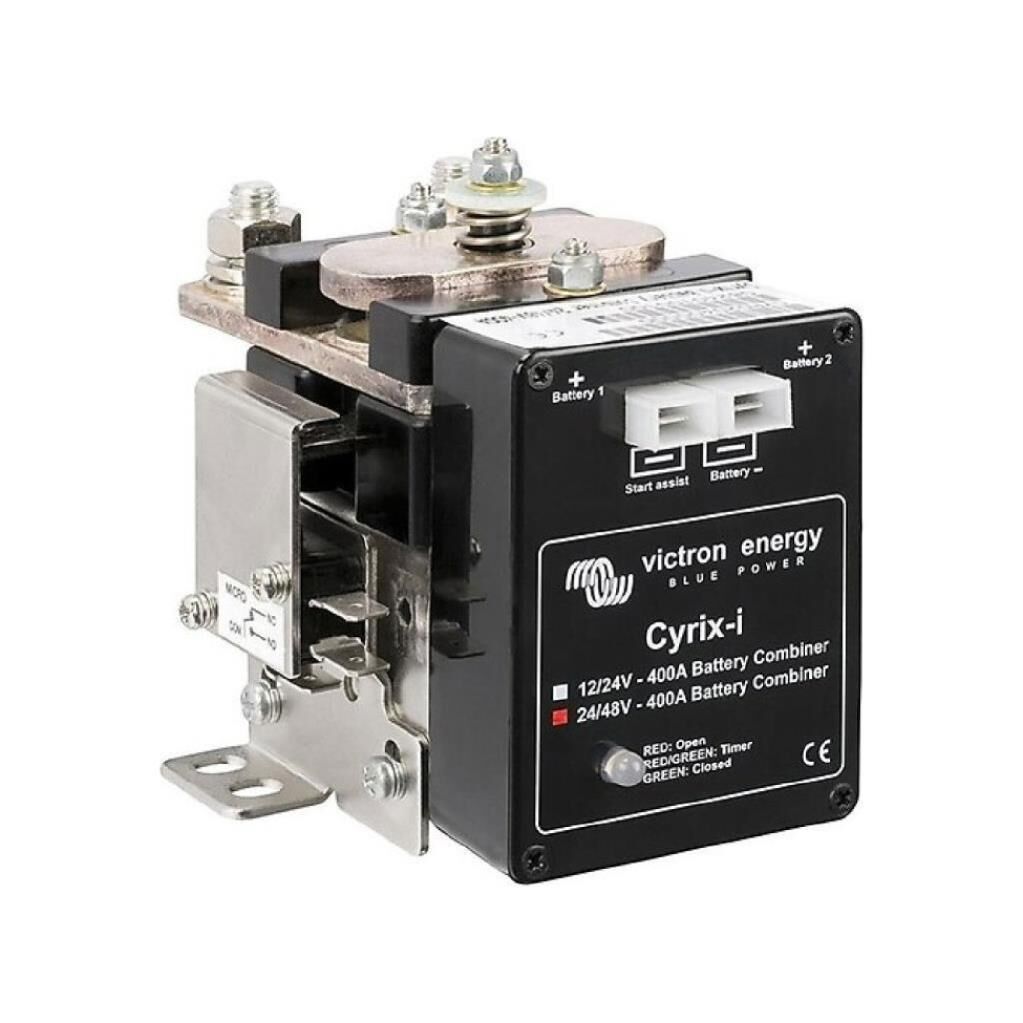

Victron Cyrix-i 12-24V- 400 Amp Smart Battery Combiner CYR010400000 Battery Charger

Victron Cyrix-Ct 12-24-400 Amp Smart Battery Combiner

New: Intelligent battery monitoring to prevent unwanted switching Some battery combiners will disconnect the battery when a short but high amperage load occurs. The battery combiner may not be able to connect a large but discharged battery pack if the DC voltage suddenly drops below the cut-out value after the batteries are connected.

Cyrix-i's software does much more than just connect and disconnect based on battery voltage and a fixed time delay. Cyrix-i looks at the overall trend (voltage increase or decrease) and only reverses a previous action if the trend has reversed over a period of time. The time delay depends on the voltage deviation with respect to the trend.

  In addition, four key timing profiles can be selected (see back page). 12/24 V and 24/48 V auto-ranging Cyrix-i automatically detects the system voltage. Zero voltage loss Cyrix battery combiners are an excellent replacement for diode isolators.

The most important feature is that there is no need to increase the output voltage of the alternator or battery chargers, as there is almost no voltage loss. Increasing the priority of the starter battery In a typical installation, the alternator is connected directly to the starter battery. The auxiliary battery and possibly a bow servo motor and other batteries are connected to the starter battery with Cyrix battery combiners.

If the Cyrix detects that the starter battery has reached the connection voltage, it activates and allows parallel charging of other batteries. Bi-directional voltage sensing and power supply from both batteries Cyrix detects the voltage of both connected batteries. Thus, the accessory is also activated when the battery is being charged with a battery charger. The Cyrix-i has dual power supplies.

This way, it also shuts down when the voltage on a battery is too low for the Cyrix to operate. To prevent unexpected operation during installation, or if a battery is disconnected, the Cyrix-i will not turn off if the voltage at one of the two battery connections is less than 2 V (12 V battery) or 4 V (24 V battery) or 8 V (48 V battery).

Parallel connection in emergencies The Cyrix can also be activated with a button (Cyrix stays on for 30 seconds) or a switch to manually parallel the batteries. This function is particularly useful in emergency situations when the starter battery is discharged or damaged.
