Victron Cyrix-Ct 12-24-230 Amp Smart Battery Combiner CYR010230010 Battery Charger

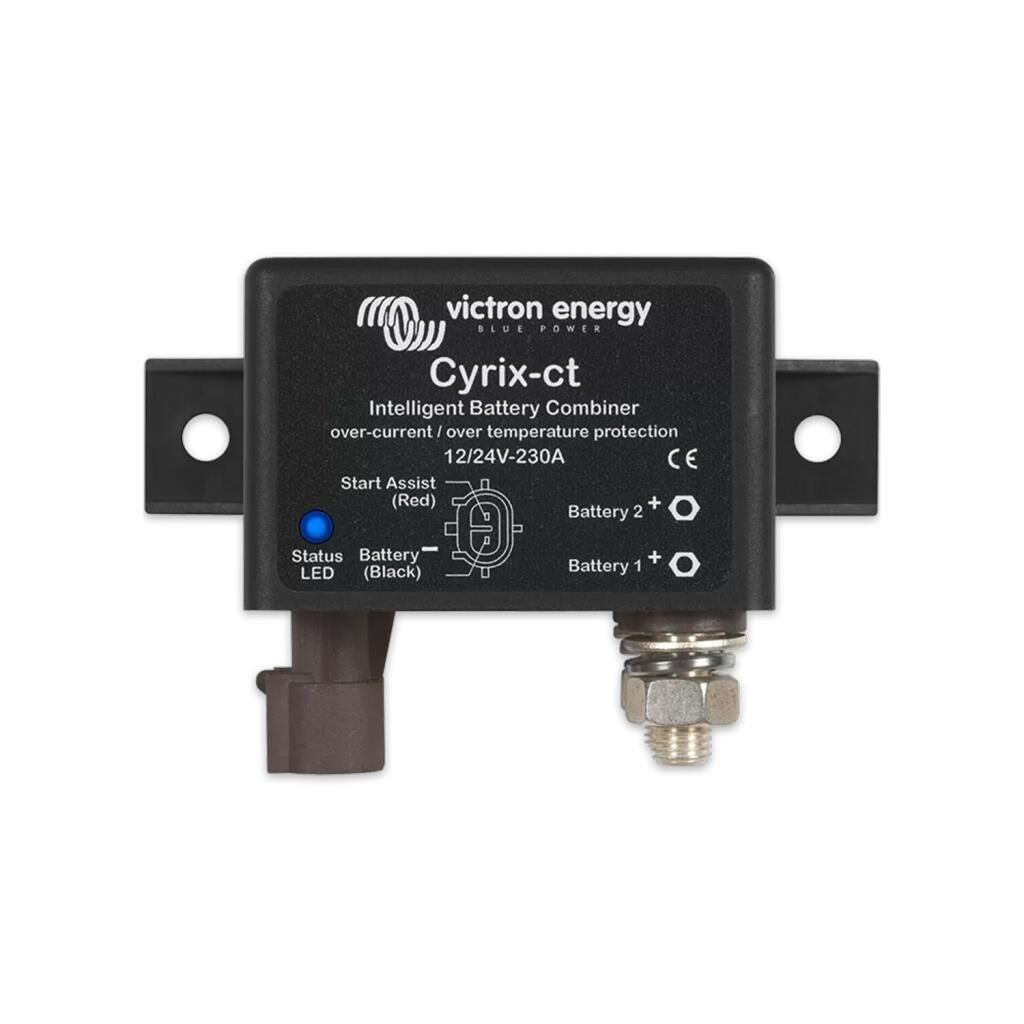

Victron Cyrix-Ct 12/24V-230 Amp Smart Battery Combiner

Intelligent battery monitoring to prevent unwanted switching
Some battery combiners (also called voltage controlled relay or split charge relay) will trip the battery when a short but high amperage load occurs. The battery combiner may not be able to connect a large but discharged battery pack if the DC voltage suddenly drops below the cut-out value after the batteries are connected. The Cyrix-ct 12/24's software does much more than just connect and disconnect based on battery voltage and a fixed time delay. Cyrix-ct 12/24 looks at the overall trend (voltage increase or decrease) and only reverses a previous action if the trend has reversed over a period of time. The time delay depends on the voltage deviation with respect to the trend.
Long bolts allowing multiple power cable connections
Cyrix 12/24-230: 16mm (M8)
Protection against high temperature (eg due to prolonged overload) Cyrix is switched off in case of excessive contact temperature and reactivates when the temperature drops.
LED status indicator (Cyrix 12/24 230 only)
LED on: on LED 10 sec. lit: disabled
LED 2 sec. on: connecting LED 2 sec. flashing: disconnecting
LED 0.25 sec. flashing: alarm (high temperature; voltage > 16 V; both batteries < 10 V; one battery < 2 V) (must be multiplied by two for 24 V)
12/24 V autoranging The Cyrix-ct 12/24 automatically detects the system voltage.
Zero voltage loss Cyrix battery combiners are an excellent replacement for diode isolators. The most important feature is that there is no need to increase the output voltage of the alternator or battery chargers, as there is almost no voltage loss.
Increasing the priority of the starter battery In a typical installation, the alternator is connected directly to the starter battery. The auxiliary battery and possibly a bow servo motor and other batteries are connected to the starter battery with Cyrix battery combiners. If the Cyrix detects that the starter battery has reached the connection voltage, it activates and allows parallel charging of other batteries.
Bi-directional voltage sensing and power supply from both batteries Cyrix detects the voltage of both connected batteries. Thus, the accessory is also activated when the battery is being charged with a battery charger. The Cyrix-ct 12/24 has a dual power supply. This way, it also shuts down when the voltage on a battery is too low for the Cyrix to operate. To prevent unexpected operation during installation or if a battery is disconnected, the Cyrix-ct 12/24 will not turn off if the voltage at one of the two battery connections is less than 2 V (12 V battery) or 4 V (24 V battery).
Parallel connection in case of emergency (Starting Assist) Cyrix can also be activated with a button (Cyrix stays on for 30 seconds) or a switch to manually parallel connect the batteries. This function is particularly useful in emergency situations when the starter battery is discharged or damaged.
