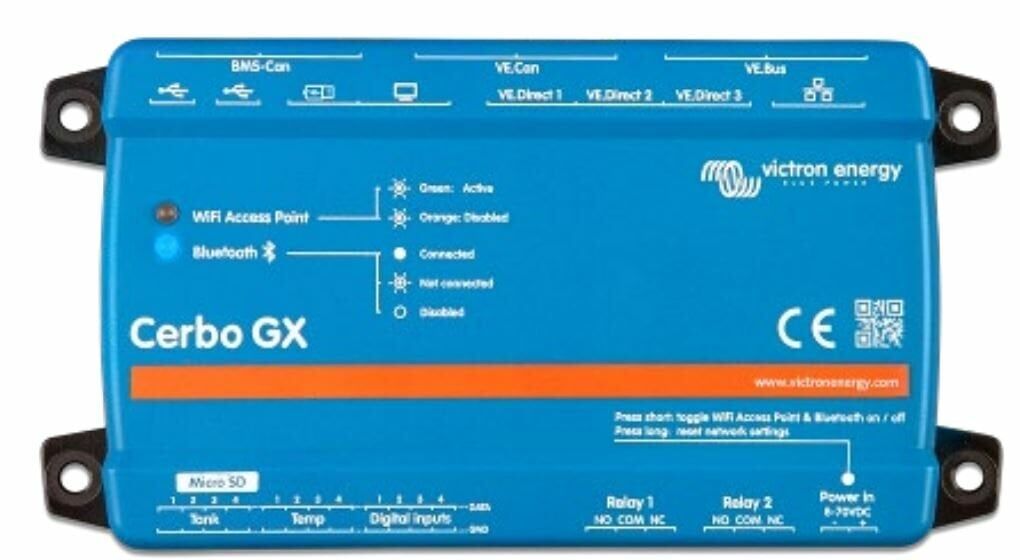

Cerbo GX System Monitoring BPP900450100

Displays and system monitoring

This all-new contact center gives you full control of your system at all times, wherever you are, maximizing system performance. Connect easily via our Victron Remote Connection Management (VRM) portal or access directly with our VictronConnect app with additional GX Touch 50* accessory, MFD or Bluetooth functionality. This latest update for the GX series redefines every aspect of smart power solutions, bringing together the best in connectivity.

(*GX Touch 50 touchscreen sold separately)

Excellent monitoring and control

Instantly view battery state of charge, power consumption, power harvesting from PV, generator or utility grid, or check tank levels and temperature readings. Easily control shore power input current limit, start/stop generators (automatically), or change settings to optimize the system. Track alerts, perform diagnostic checks, and resolve issues with remote management. Cerbo GX turns demanding power processes into an effortless experience.

Maximize your system performance

Cerbo GX maximizes the performance of your system components in real time and ensures that they are in perfect harmony. With its Dual Core Processor and additional CAN bus port, you can now support even larger systems. Keep a close eye on managed (lithium) batteries while the second port supports up to 25 simultaneously connected VE.Can solar chargers. The new NMEA 2000-out support allows the GX to easily integrate into any boat network. You get ultimate control with four tanks and four temperature ports, as well as 3 VE.Direct ports, 3 USB ports, 4 digital inputs and 2 relays. Maximizing system performance has never been easier.

Increase your view

The new (optional) GX Touch 50 display gives you instant access to your system overview and adjustments in the blink of an eye. Its ultra-thin 5 inch waterproof design, top mountable structure and simple installation allow you to have a great deal of flexibility when creating a clean and tidy dashboard.

Easy assembly and configuration

Cerbo GX is optimized to go beyond the standards of professional installers. The device can be easily mounted on a DIN Rail (with DIN35 adapter small, not included) and its separate touchscreen is now bolted to the board, eliminating the need for perfect cutouts (like the Color Control GX). Moreover, by connecting with only one cable, it puts an end to the cable mess in the panel. The new Bluetooth feature allows fast connection and configuration via our VictronConnect app.

Overcome power challenges

Cerbo GX fulfills a multitude of needs and provides excellent control over a wide variety of applications. In Marine solutions, including generators, or solutions such as Back-up Power Supply and Off-Grid Operation, it will automatically start/stop your generator or delay operation until the end of "quiet" hours. It keeps backup batteries for Energy Storage Systems at 100% charge, activates in case of power outage, and saves costs by diverting excess (solar energy) power to self-consumption. It ensures the flawless operation of important systems for highway and emergency vehicles. These are just some of its features...
