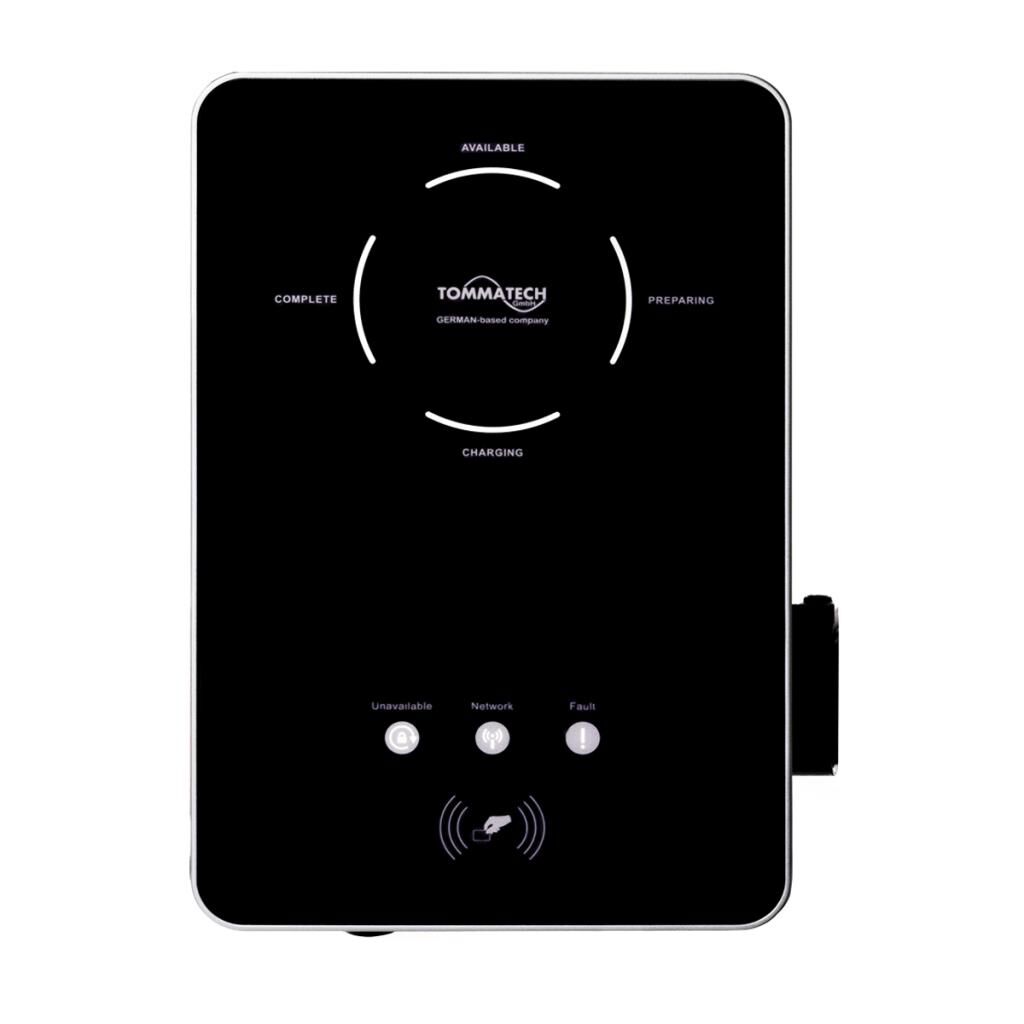

TommaTech Trio 22kW Üç Faz/400V AC Elektrikli Araç Şarj Cihazı
TommaTech (EVC) Vehicle Chargers provide fast and easy charging of electric vehicles with different charging standards in Economy Mode, Quick Charge Mode or Special Mode via Type II connectors. Car chargers with a smart and compact design (EVC) can be used in indoor and outdoor applications and also have a wide operating temperature range. This makes TommaTech (EVC) Car Chargers the preferred choice for residential, office or public applications. In addition, vehicle chargers with full compatibility with TommaTech Trio and Uno Hybrid Inverters enable maximum utilization of solar energy in combination with lithium battery applications.TommaTech Trio 22kW Three Phase/400V AC Electric Vehicle Charger
36 Months Warranty - New Product
TommaTech ® Smart EV Charger Series
TommaTech ® Smart EV Charger Series
| MODEL | Uno-EVC-7.2 | Trio-EVC-11.0 | Trio-EVC-22.0 |
| AC Rated Input | |||
| Phases/Lines | Single Phase / L1+N+PE | 3 Phase / L1+L2+L3+N+PE | 3 Phase / L1+L2+L3+N+PE |
| Voltage [V] | 230+10% | 400+10% | 400±10% |
| Frequency [Hz] | 50/60 | 50/60 | 50/60 |
| AC Rated Output | |||
| Voltage [V] | 230+10% | 400+10% | 400+10% |
| Current [A] | 32 | 16 | 32 |
| Power [kW] | 7.2 | 11th | 22 |
| Interface | |||
| Wi-Fi or 4G LTE | Optional | ||
| RS485 | Yes | ||
| RFID | Yes | ||
| OCPP 1.6 (JSON) | Optional | ||
| LCD Display | Optional | ||
| CT Clamps | Uno Option | Trio Option | Trio Option |
| General Data | |||
| Body Material | Plastic/Metal | ||
| Installation Method | Wall Mount | ||
| Wall Mount Hanger | Yes | ||
| Charge Outlet | Charging Cable with Type 2 Connector / Socket Outlet | ||
| Cable Length [m] | 5 | ||
| Operating Temperature [°C] | -20~+50 | ||
| Operating Humidity [%] | 5%-95% Non-Condensing | ||
| Working Height [m] | < 2000 | ||
| Protection Class | IP54 | ||
| Application area | Indoor / Outdoor | ||
| Cooling Concept | Natural Cooling | ||
| Dimensions [mm] | 249 x 370 x 142 | ||
| Weight [kg] | 5.6 | 6.2 | 6.2 |
| Security measures | |||
| Multiple Protection | Over/Low Voltage Protection, Overload Protection, Short Circuit Protection, Residual Current Protection, Grounding Protection, Surge Protection. Over Temperature Protection | ||
| Leakage Current Protection | 30mA Type A RCD (EN 61008) + 6mA DC protection (EN 62955) | ||
| Encrypted Communication | TLS | ||
| Security Standard | IEC 61851-1:2017, IEC 62196-2:2016 | ||
| Built-in PEN Failure Technology | Yes | ||
| Warranty [year] | 3 (5 Optional) |
