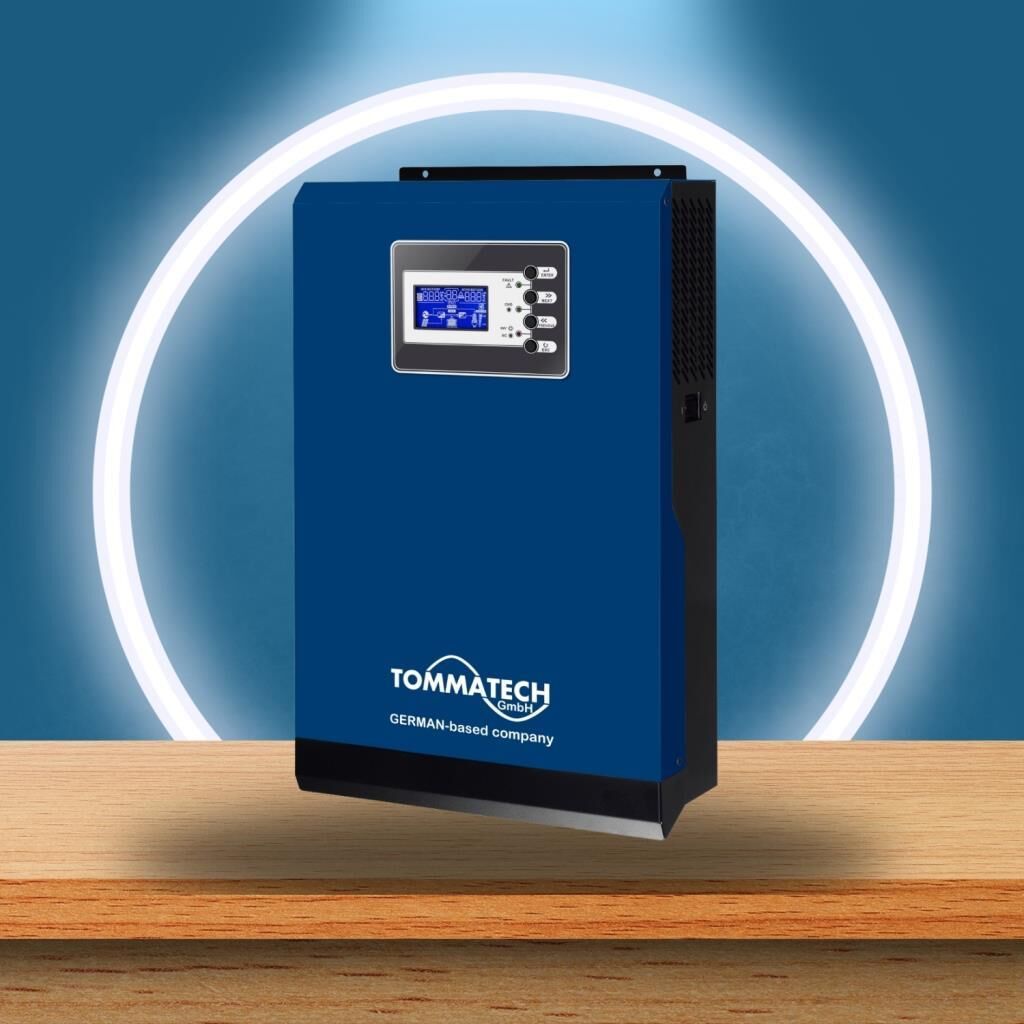

Tommatech New 5kva 5000 watt 48 Volt Intelligent inverter Inverter Full Sineus Intelligent Inverter
Havale ile ödemelerde %2 indirim
CAN BE CONNECTED TO BATTERY, Solar Panel, You Can Use It As UPS.
5000 WATT AC POWER YOU GET IT.
Our product is guaranteed for 2 years.
Grid Connect Smart Inverter
These devices are inverter and charger that combine the functions of inverter, solar charger and battery charger to offer uninterrupted power supply in portable size. Its comprehensive LCD display offers user configurable and easily accessible button operation such as battery charging current, AC input or Solar input charging priority, and acceptable input voltage based on different applications.
Features
- pure sine wave inverter
- Integrated MPPT solar energy charging feature (applicable for MPPT inverter)
- Configurable input voltage for home appliances and personal computer with LCD setting
- Configurable battery charging current based on applications with LCD setting
- Configurable AC/Solar Charger feature with LCD setting
- Compatible with mains voltage or generator power
- Auto restart while AC is regaining
- Overload / Over Temperature / Short circuit protection
- Intelligent battery charger design for optimized battery performance
Inverter Installation
Before choosing the place to be installed, please carefully review the following items.
- Do not mount the inverter on flammable building materials.
- Mount on a solid and solid surface.
- Mount the inverter at eye level so that the LCD screen can be easily read.
- Ambient temperature for optimum operating performance 0 ? It should be between 55 degrees.
Battery Connection
A separate DC fuse or disconnector can be installed between the battery and the inverter for safe operation and regulatory compliance. The use of suitable cables for the battery connection is of great importance in terms of system safety and efficient operation. For 1-3KVA models at least 100 amps, for 4KVA and 5KVA models at least 200 amps battery is recommended.
AC Input / Output Connection
Before connecting ac input power source, please connect high current capacity fuse between inverter and AC input power source. This will enable the inverter to easily disconnect the AC power supply during maintenance.
Recommended fuse specifications for AC circuit breaker; It is 10A for 1KVA, 20 Amper for 2KVA, 32 Amp for 3KVA, 50 Amp for 4KVA and 5 KVA.
When making the AC input/output connection, install the AC input or output wires on the terminal block in accordance with the L, N and ground poles and tighten the screws.
Soil ? yellow and green cable
L (Line) ? Brown or black cable
N ( Neutral ) ? It is blue cable color.
Solar Panel Connection
Before connecting the solar panel, connect a DC fuse between the PV input and the solar panels. Note that all wiring for the PV section is special solar cable. The use of suitable solar cables for the PV module connection is of great importance for system safety and efficient operation.
- The open circuit voltage (Voc) of the PV modules must not exceed the maximum PV array open circuit voltage of the inverter.
- The open circuit voltage (Voc) of the PV modules should not be higher than the minimum battery voltage.
-
