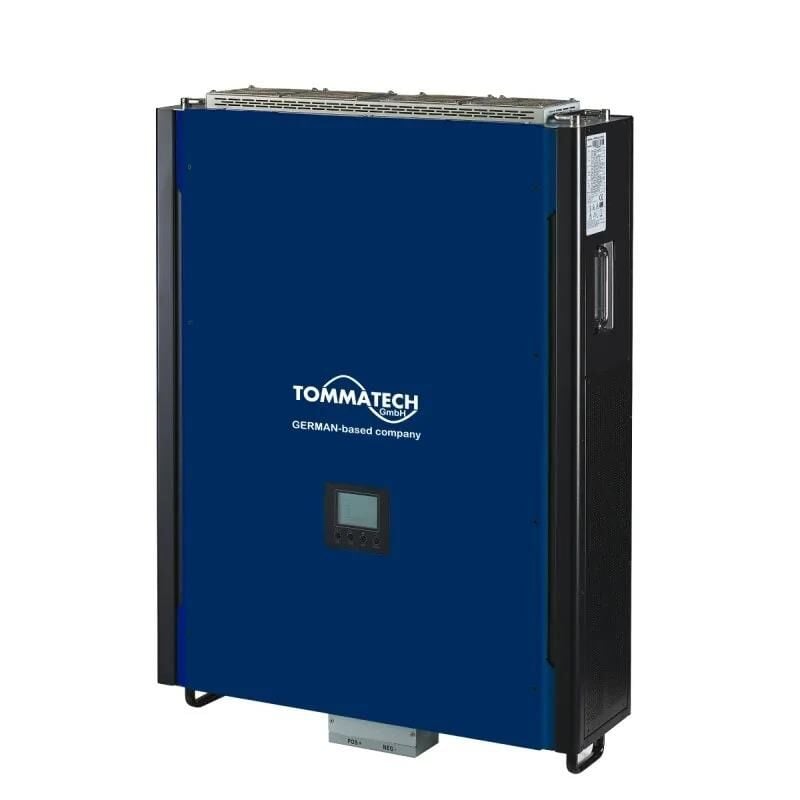

TOMMATECH 15 KVA 15 KW MPPT THREE PHASE INTELLIGENT UPS INVERTER Full Sineus Intelligent Inverter
%32
232.895,49 TL
158.042,50 TL
12 Aya Varan Taksit İmkanı
Havale ile ödemelerde %2 indirim
Havale ile ödemelerde %2 indirim
starting from 16.436,42 TL!
Stock code
OFG-TT-10-PMPPT15K-TF-P
Category
Brand
Warranty Period
24 Month
TommaTech HV PLUS Series 15 K 48V MPPT Intelligent Hybrid Inverter 15000 Watt 48 Volt
24 Months Warranty - New Product
TommaTech ® HV PLUS Series Hybrid Intelligent Inverters
- Self consumption and feeding option -
- Programmable power supply priority -
- Battery charging modes for different battery types -
- Multi-process mode -
- Timer for Off/On-Grid Operations -
- 6 pcs of parallel function -
- Automatic generator start function -
TommaTech ® HV PLUS Series Hybrid Intelligent Inverter Technical Details
| MODEL | TT-PLUS10K/MPPT | TT-PLUS15K/MPPT |
| Phase | 3 Phase Input / 3 Phase Output | |
| Maximum PV Input Power | 14850 W | 22500W |
| Rated Output Power | 10000W | 15000W |
| Maximum Charging Power | 9600W | 15000W |
| PV INPUT (DC) | ||
| Rated DC Voltage / Maximum DC Voltage | 720 VDC / 900 VDC | |
| Starting Voltage / Starting Supply Voltage | 320 VDC / 350 VDC | |
| MPPT Voltage Range | 350 VDC ~ 850 VDC | |
| Number of MPPTs / Maximum Input Current | 2 / 2 x 18.6A | 2/A: 37.65A; B: 18.6A |
| MAINS OUTPUT (AC) | ||
| Rated Output Voltage | 230 VAC (PN) / 400 VAC (PP) | |
| Output Voltage Range | 184 - 265VAC per Phase* | 184 - 264.5VAC Per Phase |
| Rated Output Current | 14.5A Per Phase | 21.7A Per Phase |
| Output Power Factor | >0.99 | |
| PRODUCTIVITY | ||
| Maximum Efficiency (DC/AC) | 96% | |
| European Efficiency in Voltage | 95% | |
| AC INPUT | ||
| AC Start Voltage / Auto Restart Voltage | 120 - 140 VAC Per Phase / 180 VAC Per Phase | |
| Acceptable Voltage Range | 170 - 280 VAC Per Phase | |
| Maximum AC Input Current | 40 A | |
| BATTERY MODE OUTPUT (AC) | ||
| Rated Output Voltage | 230 VAC (PN) / 400 VAC (PP) | |
| Output Ac Waveform | Pure Sine Wave | |
| Efficiency (Dc to Ac) | 91% | |
| BATTERY & CHARGING CONTROLS | ||
| Rated DC Voltage | 48 VDC | |
| Maximum Charge Current | 10A - 200A | 5A - 300A |
| PHYSICAL PROPERTIES | ||
| Depth x Width x Height (mm) | 167.2 x 500 x 622 | 219 x 650 x 820 |
| Net Weight (Kg) | 40 | 62 |
| INTERFACE INFORMATION | ||
| Communication Port | RS-232/USB | RS-232, USB and Dry contact |
| Smart Card Slot | Optional SNMP, Modbus and AS-400 cards available | |
| ENVIRONMENTAL INFORMATION | ||
| Relative humidity | 0 ~ 90% RH (Non-Condensing) | |
| Operating temperature | -10 to 55°C | |
| Altitude | 0 ~ 1000 m** |
*The above data may vary depending on country requirements and different AC voltage ratings.
**In cases where the altitude is above 1000 meters, there may be a 1% power reduction every 100 meters.
The data and technical specifications specified in this document are for preliminary information purposes, and the way of use of the products may vary depending on the system design and environmental conditions.
Teknovation Arge Bilişim Dan. Ltd. Sti. It was established by the Young Entrepreneur Electrical-Electronics Engineer Hamdin Bağçeci as a state-supported R&D company and continues its commercial activities in the field of Solar Electricity Generating Systems, increasing day by day with customer satisfaction.
In solar systems, we try to help our customers as much as possible with the right product and the right price.
A little warning to our customers. They should be careful about the unbranded, unlabeled Solar Panels removed from the power plants and the batteries that are trying to be sold as gel but are not real gel. We would like to share the information that such products are not allowed in our company. Of course, it is important to consider these when making price comparisons.
