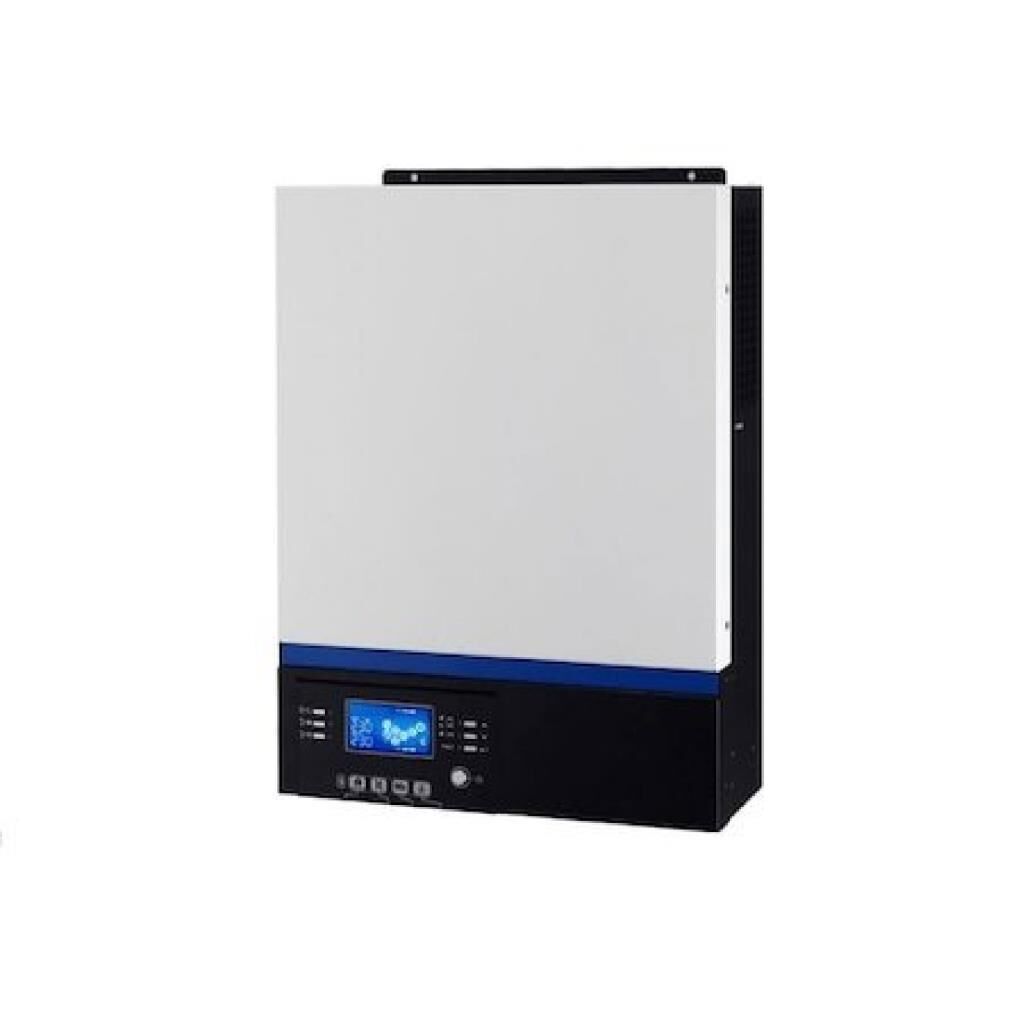

Tescom 450 Volt VMIII 5000 WATT 48V MPPT TAM SİNÜS AKILLI İNVERTER

Tescom 450 Volt VMIII 5000 WATT 48V MPPT FULL SINUS SMART INVERTER

TESCOM IS THE BRAND

5000 va 5000w 120-450 vdc Mppt 80a Inverter MAX VIII SERIES

Main Features battery-free operation wide pv voltage range 120-450 vdc

mppt 80a solar charge card

• pure sine wave solar inverter
• Output power factor 1
• High PV input voltage range
• Inverter works with and without battery
• Built-in 80A MPPT solar charger
• Battery balancing function to optimize battery performance and extend lifespan
• Built-in anti-dusk kit for harsh environments

VM III Voltronic MAX Axpert Intelligent Inverter 5000W

Important Note: Inverter must be commissioned by Authorized Service or Professional Installers. Danger of Death due to High Voltage input!


• Integrated Bluetooth interface with Android App VM III series is integrated Bluetooth interface ready for mobile monitoring. This technology enables wireless communication up to 6 ~ 7m in open area.
• Detachable LCD control module with various communicationsThis removable LCD control module can be turned into a remote panel. Users can install the LCD panel within an reachable area of up to 20 meters from the inverter.
• Supports USB On-The-Go function The VM III series supports USB On-the-Go function to facilitate data upload/download.
• User-friendly LCD operationUsers can easily adjust or change the charging current, output Source and charger source priority is via the LCD control panel to optimize inverter performance.
• Replaceable fan designVM III series is designed with replaceable fan. It simplifies maintenance and reduces maintenance cost.
• Communication port reserved for BMS (RS-485, CAN-BUS or RS-232)This third generation inverter is reserved for communication port for BMS. For detailed information, please contact sales directly.
• Battery balancing prolongs lifetimeThis inverter charger has battery balancing function. This function will help remove sulfation to optimize battery performance and even extend its lifespan.
• Battery independence The inverter can continue to power the loads from PV energy or from the grid without the battery connected.

Output Power: 5000 Watts Continuous

Peak Power: 10000VA for 3 Seconds

Output Voltage: AC-230V 50 Hz

Output Wave Mode/Type: Sine/Sine Wave Mode

Input Voltage: 48V DC nominal

Maximum PV connection capacity 5000W (Recommended number of panel connection 12 pieces 280W series or 7+7 pieces 280W two arms parallel)

Maximum PV input Voltage 500VDC

MPPT Voltage range 120-450VDC

Size: 115*300*400mm

Weight: 10 Kg

Battery charging feature from mains electricity or generator 60A

MPPT Solar Charge Controller 80A
