Teknovasyon Arge Tumurly® Vortex1.0 - 1000 Watt Dikey Rüzgar Türbini Paketi Şarj Kontrol Cihazı ve Dumpload
Vortex1.0
Efficient, Durable, Reliable, Technological

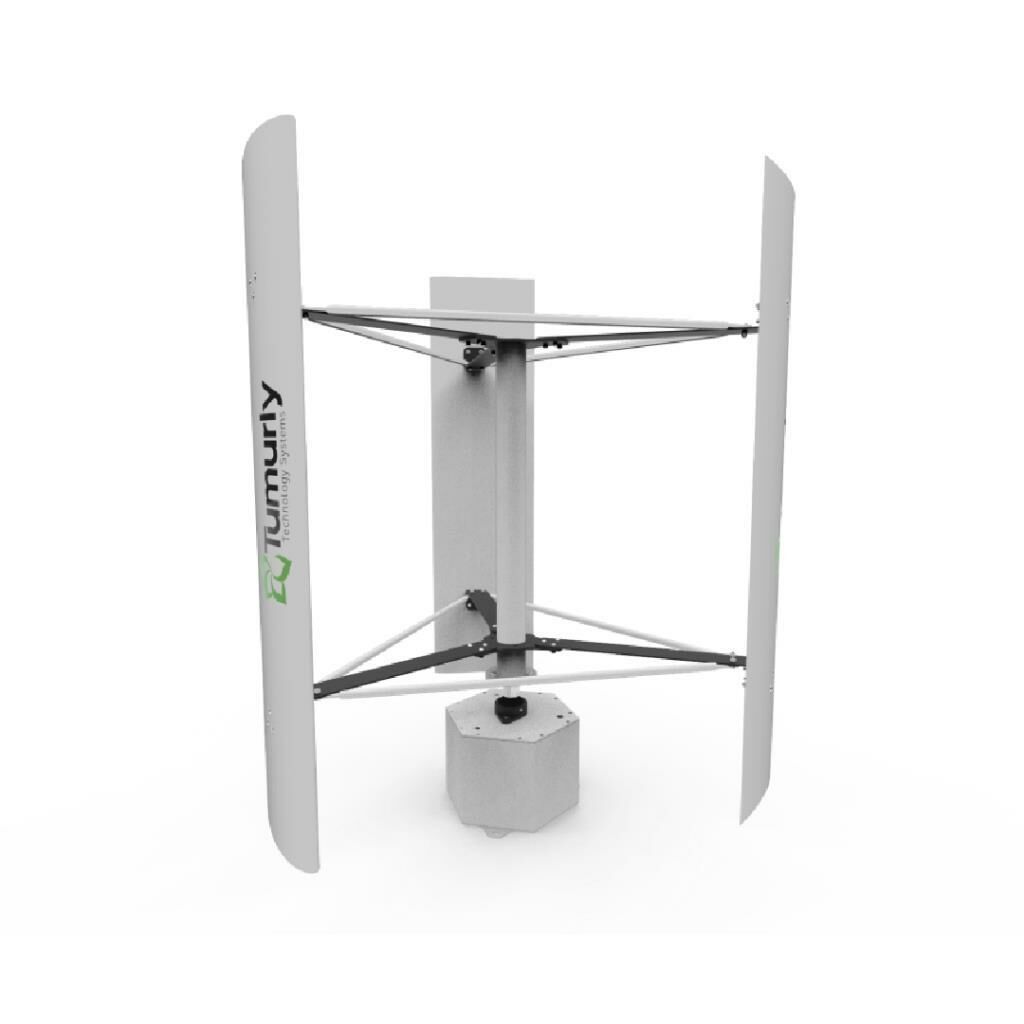

The Tumurly® Vortex1.0 vertical wind turbine is the latest generation of extremely durable and efficient wind turbines.
- The Vortex1.0 wind turbine has a permanent magnet generator with strong N42 neodymium magnets with steel slots inside, with a technological and highly efficient vertical blade design.
- In case of wind, if the speed is over 3 m/s, the turbine will rotate freely, exceeding this holding torque.
-Maintenance-free sliding contact (slip ring) ensures a good current flow and does not allow bending of the cable pole.
-Vortex1.0 wind turbine generates AC Electricity to charge DC batteries or feed a grid. By connecting an inverter to the grid
Technical Data
-Evaluative Power 1100 W(at12m/s)
-3 blades vertical
Permanent magnet, brushless, gearless
-The generator is maintenance free
-Body Material Aluminum
-Operating Voltage 0 - 90 AC
-Current 3 Phase-AC
-Total Turbine Mass 55 kg
-Max. Noise 30 dB
-Lifespan >25 years
-Warranty 2 Years
-Turbine Diameter 1000 mm
-Wing Height 1050 mm Wing
-Material of Aluminum
-Rotor blade weight 550 g
- Hub Flange Cast Steel
-Initial wind speed 3 m/s
-Clockwise Direction
-Wings Max. RPM 450
-Breaking Method EM Brake
Turbine Test Standards
European Directives
- Machinery Directive (2006/42/EC)
- Low Voltage Equipment Directive (2014/35/EU)
- Electromagnetic Compatibility Directive (2014/30/EU)
European Standards
- EN IEC 61400-2:2014
- EN 60204-1:2018
- EN ISO 12100:2010
- EN IEC 61000-6-1:2019
- EN IEC 61000-6-2:2019
Eligible places to apply
-Commercial and Industrial
-Housing and Holiday Village
-Agricultural
-No Network Location
Advantages
- Energy cost savings from wind-generated power
- Does not require scheduled maintenance
- Designed to operate reliably in harsh cold and hot climates
- Almost no environmental impact
