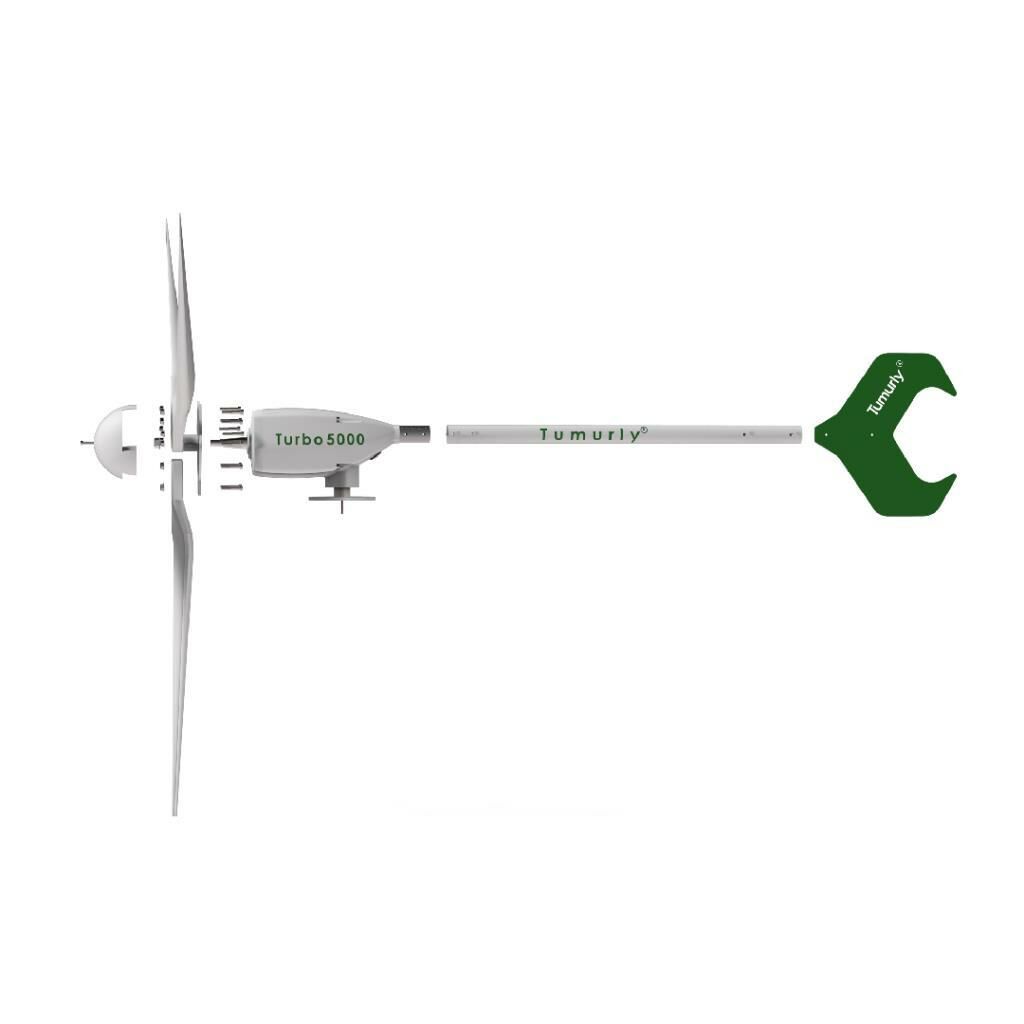

Teknovasyon Arge Tumurly® Turbo5000 - 5000 Watt Yatay Rüzgar Tübini Paketi Şarj Kontrol cihazı ve Dumpload
Tumurly horizontal Wind Turbine is sent to you as 5000W + Charge Controller and Dumpload device in a single package. Tumurly Turbo is a new generation extremely durable and efficient wind turbine. The generator body is equipped with aluminum cooling fans. The maintenance-free slide contact guarantees current flow so there are no kinks in the wires. The Turbo5000 wind turbine has a permanent magnet generator with strong N42 neodymium magnets with steel slots inside. If the wind speed is over 3 m/s, the turbine will rotate freely, exceeding the holding torque. The wind turbine generates AC Electricity to charge your DC batteries or to feed ten grid wind turbine inverters to be connected to the grid.
Tumurly Wind Turbine General Benefits
- Energy cost savings from wind-generated power
- Reliable operation in all weather conditions
- No harm to the environment
- Does not require constant maintenance
- Affordable cost and long-term profitable investment
Tumurly Wind Turbine Usage Areas
- Commercial and industrial
- Residence and holiday village
- Agricultural
TUMURLY WIND TURBINE 5000W PACKAGE CONTENTS;
- Charge controller 1 pc
- Blade generator 1 pc
- Residence 1 unit
- 3 pieces of wing blades
- Turbine drive tail 1 piece
- Tail pipe 1 pc
- Turbine head 1 piece
- Head flange 1 pc
- Screw pack 1pc
- Delivery box (wood 60 kg) 1 pc
- Anti vibration kit 1 pc
TUMURLY HORIZONTAL WIND TURBINE TECHNICAL DOCUMENT PAGE
Rated power: 5000 W (at 15 m/s)
Type : 3 Blades, horizontal (permanent magnet-toothless-flat type)
Generator: Effective PMG
Material: Aluminum
Operating voltage: 0-90 AC
Current : 3 Phase AC
Total Weight : 45 kg
Noise level: 60 dB
Working period : >20 Years
Warranty period: 2 Years
Wing length : 280 cm
Covered area: 6.15 m2
Blade material : Composite
Wing Weight: 1200 gr (Piece)
Center flange : Cast steel
Initial Speed : 3,5 m/s (Wind)
Wind charging speed: 4 m/s
Direction : clockwise
Max RPM: 1200
Winding system: EM Brake
TURBINE STANDARD TESTS
- Machinery Directive (2006/42/EC)
- Low Voltage Equipment Directive (2014/35/EU)
- Electromagnetic Compatibility Directive (2014/30/EU)
EUROPEAN STANDARDS
- EN IEC 61400-2:2014
- EN 60204-1:2018
- EN ISO 12100:2010
- EN IEC 61000-6-1:2019
- EN IEC 61000-6-2:2019
usage areas
- Commercial and industrial
- Residence and holiday village
- Agricultural
