Güneş Enerjisi Bağ Evi Solar Paketi 5KVA İnverter 330W Güneş Paneli 150AH Jel Akü

%37
157.477,40 TL
98.814,87 TL
   12 Aya Varan Taksit İmkanı
  Havale ile ödemelerde %2 indirim
starting from 10.276,75 TL!
Uygun Taksit Oranları İle Whatsapp'tan Sipariş Ver
Stock code
BDFGRTZ3
Warranty Period
24 Month

Teknovation Arge Solar Energy Vineyard House Solar Package 5KVA Inverter 330W Solar Panel 150AH Gel Battery

Solar Energy Vineyard House Solar Package 5KVA Inverter 330W Solar Panel 150AH Gel Battery

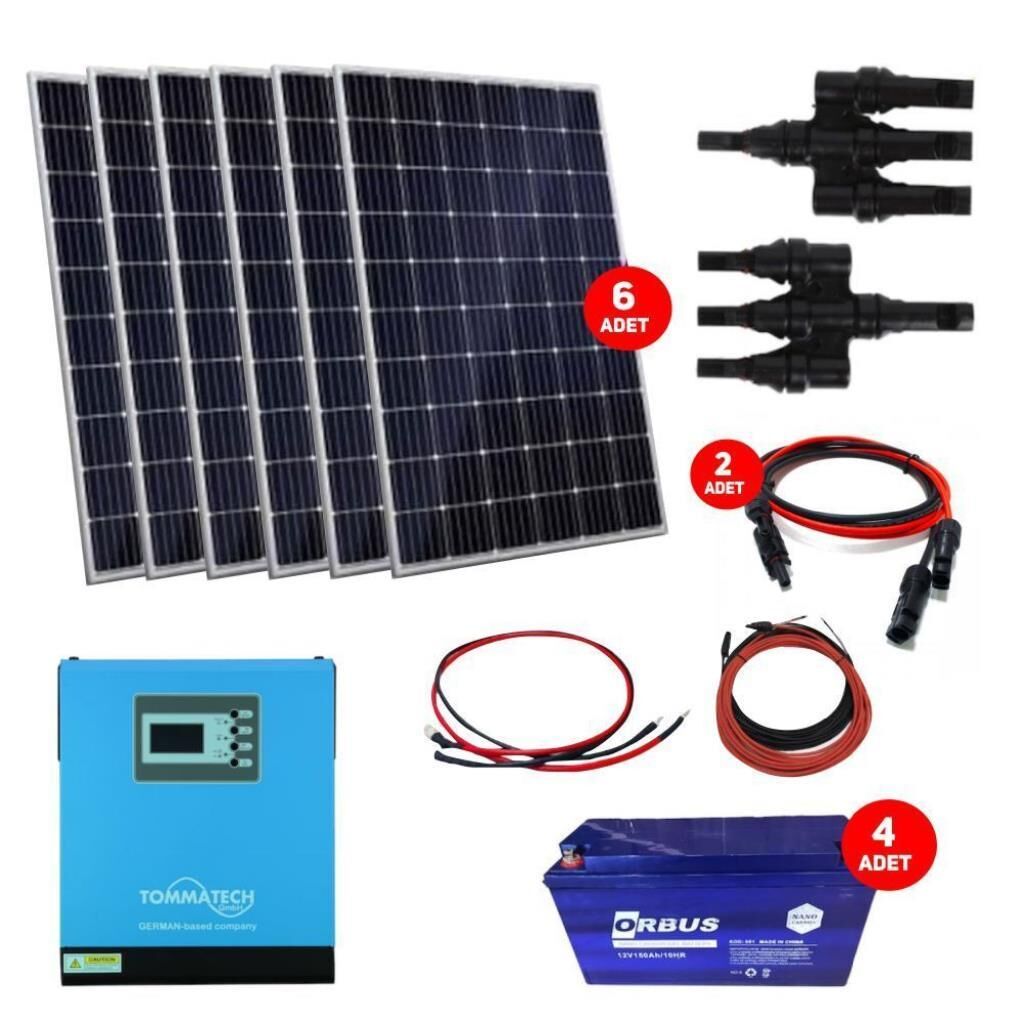

Set Content:

5kva 5000 watt 48 Volt Smart inverter Inverter   (1 Piece)
330 WATT MONOCRYSTAL SOLAR PANEL PERC SOLAR PANEL (6 Pieces)
12 VOLT 150 Ampere CARBON GEL BATTERY DEEP CYCLE DEEP CYCLE 202 ( 4 Pieces )
Solar cable Solar panel Cable 20 meters MC4 (1 piece)
Parallel Connection Cable Between Panels Solar Cable 6mm (2 Pieces)
Cable Between Battery and Inverter Solar Solar Panel (1 Piece)
3LU Branch Panel Parallel Connector ( 1 Piece )

5kva 5000 watt 48 Volt Smart Inverter Inverter (1 Piece)

Features
pure sine wave inverter
Integrated MPPT solar energy charging feature (applicable for MPPT inverter)
Configurable input voltage for home appliances and personal computer with LCD setting
Configurable battery charging current based on applications with LCD setting
Configurable AC/Solar Charger feature with LCD setting
Compatible with mains voltage or generator power
Auto restart while AC is regaining
Overload / Over Temperature / Short circuit protection
Intelligent battery charger design for optimized battery performance
Inverter Installation
Before choosing the place to be installed, please carefully review the following items.
Do not mount the inverter on flammable building materials.
Mount on a solid and solid surface.
Mount the inverter at eye level so that the LCD screen can be easily read.
Ambient temperature for optimum operating performance 0 ? It should be between 55 degrees.
Battery Connection
A separate DC fuse or disconnector can be installed between the battery and the inverter for safe operation and regulatory compliance. The use of suitable cables for the battery connection is of great importance in terms of system safety and efficient operation. For 1-3KVA models at least 100 amps, for 4KVA and 5KVA models at least 200 amps battery is recommended.
AC Input / Output Connection
Before connecting ac input power source, please connect high current capacity fuse between inverter and AC input power source. This will enable the inverter to easily disconnect the AC power supply during maintenance.
Recommended fuse specifications for AC circuit breaker; It is 10A for 1KVA, 20 Amper for 2KVA, 32 Amp for 3KVA, 50 Amp for 4KVA and 5 KVA.
When making the AC input/output connection, install the AC input or output wires on the terminal block in accordance with the L, N and ground poles and tighten the screws.
Ground Yellow and green wire
L (Line) Brown or black cable
N ( Neutral ) Blue wire color.
Solar Panel Connection
Before connecting the solar panel, connect a DC fuse between the PV input and the solar panels. Note that all wiring for the PV section is special solar cable. The use of suitable solar cables for the PV module connection is of great importance for system safety and efficient operation.
The open circuit voltage (Voc) of the PV modules must not exceed the maximum PV array open circuit voltage of the inverter.
The open circuit voltage (Voc) of the PV modules should not be higher than the minimum battery voltage.

330 WATT MONOCRYSTAL SOLAR PANEL PERC SOLAR PANEL (6 Pieces)


Certificates : CE, IEC
Electrical Characteristics
Strength : 330W
Number of Cells : 60
Open Circuit Voltage (Voc) : 39.68V
Max. Voltage (Vmp) : 34.50V
Short Circuit Current (Isc) : 10.53A
Max. Current (Imp) : 9.57A
Max. System Voltage : 1000V
Mechanical Properties
Module Dimensions (mm) : 1640*990*35
Weight : 19kg
Standard Test Conditions: Am=1.5 E=1000W/m2 Tc=25℃


12 VOLT 150 Ampere CARBON GEL BATTERY DEEP CYCLE DEEP CYCLE 202 ( 4 Pieces )

VOLT:12V
AMP: 150 AH
WARRANTY: 2 YEARS
LIFE: 10 YEARS (estimate)
SIZE: 48.5*17*24CM
KG: 44.5
Total Height: 24 CM


Solar cable Solar panel Cable 20 meters MC4 (1 piece)

6mm cable with connectors between solar panel charge control or inverter - 10m black - 10m red.
If you want more, it will be sent as a whole when you add it to the cart.


Parallel Connection Cable Between Panels Solar Cable 6mm (2 Pieces)

In order to parallel connect the panels that do not reach each other when connected in parallel, MC4 is sold with 2 pieces of 1.5 meters long 6mm thick solar cable ends.


Cable Between Battery and Inverter Solar Solar Panel (1 Piece)

10 mm cable with connectors between battery and charge control or inverter - 1m black - 1m red

3LU Branch Panel Parallel Connector ( 1 Piece )

1 FEMALE 1 MALE SET
ES-MC-4 TYPE
WITH THIS CONNECTOR, YOU CAN CONNECT THREE PANELS WITH ES-MC-4 TYPE CONNECTION CABLES IN PARALLEL.

Teknovation Arge Bilişim Dan. Ltd. Sti. It was established by the Young Entrepreneur Electrical-Electronics Engineer Hamdin Bağçeci as a state-supported R&D company and continues its commercial activities in the field of Solar Electricity Generating Systems, increasing day by day with customer satisfaction.

In solar systems, we try to help our customers as much as possible with the right product and the right price.

A little warning to our customers. They should be careful about the unbranded, unlabeled Solar Panels removed from the power plants and the batteries that are trying to be sold as gel but are not real gel. We would like to share the information that such products are not allowed in our company. Of course, it is important to consider these when making price comparisons .

Teknovation Arge Bilişim Dan. Ltd. Sti. It was established by the Young Entrepreneur Electrical-Electronics Engineer Hamdin Bağçeci as a state-supported R&D company and continues its commercial activities in the field of Solar Electricity Generating Systems, increasing day by day with customer satisfaction.

In solar systems, we try to help our customers as much as possible with the right product and the right price.

A little warning to our customers. They should be careful about the unbranded, unlabeled Solar Panels removed from the power plants and the batteries that are trying to be sold as gel but are not real gel. We would like to share the information that such products are not allowed in our company. Of course, it is important to consider these when making price comparisons.
