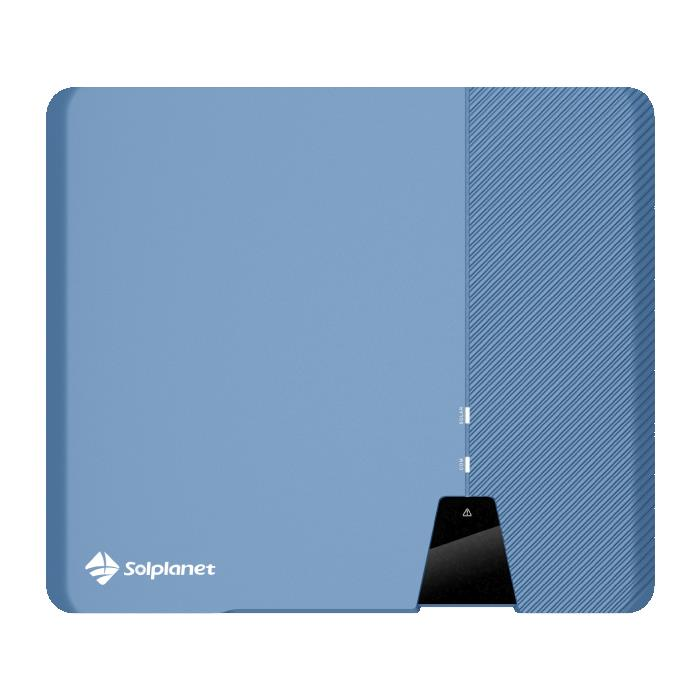

Solplanet 20kW On - Grid Three Phase Inverter – ASW20K - LT-G2 PRO

International quality standards

Dual MPPT for flexible installation

Two MPP inputs/series per MPPT input

Integrated 150% range DC/AC switch

Minimum internal consumption below 1W at night

IP65 waterproof for outdoor use

Easy installation without opening the cover with the wall-mounted SUNCLIX connection

Smart monitoring system with user-friendly application

Wi-Fi, plug-and-play 4G stick or RS485 connection

Quick and easy installation with simple tools

INPUT (DC)

Max. PV Array Power (For STC Module): 26000 Wp

Max. Input Voltage: 1000V

Rated Input Voltage: 630 V

min. Input Voltage: 150 V

Starting Voltage: 188 V

Max. Input Current: 24 A / 24 A

Max. Short Circuit Current: 36 A / 36 A

MPPT Voltage Range: 150V ~ 1000V

MPPT Quantity / PV Arrays Per MPPT: 2 / A:2, B:2

OUTPUT (AC)

Rated Output Power: 20 kW

Max. Apparent Output Power: 20 kVA

Rated Output Voltage: 220V/380V – 230V/400V – 240V/415V

Output Voltage Range: 180V ~ 295V

Rated Mains Voltage: 230 V

Nominal Mains Frequency: 50 Hz

Mains Output Frequency / Range: 50Hz/45Hz ~ 55Hz / 60Hz/55Hz ~ 65Hz

Max. Output Current: 3 x 32A

Power Factor at Rated Power: 1

Adjustable Displacement Power Factor: 0.8 overstimulated ~ 0.8 understimulated

Rated AC Harmonic Distortion (THDi): <3%

Feeding Phases: Three-phase, 3/3-N-PE

PRODUCTIVITY

Max. Efficiency: 98.2%

European Efficiency: 98.2%

PROTECTION FUNCTIONS

Input Interrupt Device: There is

DC Reverse Pole: There is

AC Short Circuit Current Endurance: Yes

Earth Leakage Monitoring: Yes

Network Monitoring: Yes

Leakage Current Monitoring Unit: Yes

Protection Class (according to IEC 62109-1): 1

Overvoltage Category (according to IEC 62109-1): AC: III; DC :ll

GENERAL FEATURES

Operating temperature: -25oC ~ +60oC

Operating Humidity: 100% RH (non-condensing)

Max. Working Height: 3000 meters

Cooling Method: Convection

Degree of Protection (according to IEC 60529): IP65

Climatic Category (according to IEC 60721-3-4): 4K4H

Night Consumption: < 1W

Topology: without transformer

Noise Emission (Typical): < 45 dB(A)

Dimensions: 490 x 497 x 212.5mm

Weight: 26kg

OTHER FEATURES

DC Connection: SUNCLIX (Phoenix Contact)

AC Connection: Quick connection

Mounting Method: wall mount bracket

Screen: LED indicators (status/error/communication)

Communication Interface: Wi-Fi / RS485 (optional)

CERTIFICATIONS and STANDARDS

CE, EN50549 ,IEC62109, IEC62116, IEC61727, IEC61683, IEC60068,

IEC61000, NB/T 32004
