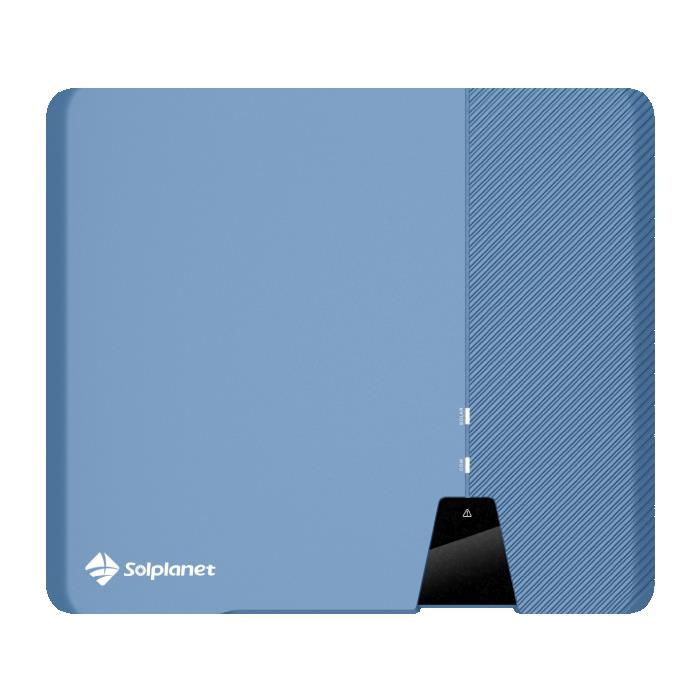

Solplanet 10kW On - Grid Three Phase Inverter – ASW10000 -L T- G2 PRO

International quality standards

Dual MPPT for flexible installation

Two MPP inputs/series per MPPT input

Integrated 150% range DC/AC switch

Minimum internal consumption below 1W at night

IP65 waterproof for outdoor use

Easy installation without opening the cover with the wall-mounted SUNCLIX connection

Smart monitoring system with user-friendly application

Wi-Fi, plug-and-play 4G stick or RS485 connection

Quick and easy installation with simple tools

INPUT (DC)

Max. PV Array Power (For STC Module): 15000 Wp

Max. Input Voltage: 1000V

Rated Input Voltage: 630 V

min. Input Voltage: 130 V

Starting Voltage: 150 V

Max. Input Current: 12 A / 12 A

Max. Short Circuit Current: 18 A / 18 A

MPPT Voltage Range: 125V ~ 950V

MPPT Quantity / PV Arrays Per MPPT: 2 / A:1, B:1

OUTPUT (AC)

Rated Output Power: 10 kW

Max. Apparent Output Power: 10 kVA

Rated Output Voltage: 220V/380V – 230V/400V – 240V/415V

Output Voltage Range: 180V ~ 295V

Rated Mains Voltage: 230 V

Nominal Mains Frequency: 50 Hz

Mains Output Frequency / Range: 50Hz/45Hz ~ 55 Hz / 60Hz/55Hz ~ 65 Hz

Max. Output Current: 15.2 A

Power Factor at Rated Power: 1

Adjustable Displacement Power Factor: 0.8 overstimulated ~ 0.8 understimulated

Rated AC Harmonic Distortion (THDi): <3%

Feeding Phases: Three-phase, 3/3-N-PE

PRODUCTIVITY

Max. Efficiency: 98.2%

European Efficiency: 96.6%

PROTECTION FUNCTIONS

Input Interrupt Device: There is

DC Reverse Pole: There is

AC Short Circuit Current Endurance: Yes

Earth Leakage Monitoring: Yes

Network Monitoring: Yes

Leakage Current Monitoring Unit: Yes

Protection Class (according to IEC 62109-1): 1

Overvoltage Category (according to IEC 62109-1): AC: III; DC :ll

GENERAL FEATURES

Operating temperature: -25oC ~ +60oC

Operating Humidity: 100% RH (non-condensing)

Max. Working Height: 3000 meters

Cooling Method: Fan cooling

Degree of Protection (according to IEC 60529): IP65

Climatic Category (according to IEC 60721-3-4): 4K4H

Night Consumption: < 1W

Topology: without transformer

Noise Emission (Typical): < 45 dB(A)

Dimensions: 424 x 375 x 172 mm

Weight: 15 kg

OTHER FEATURES

DC Connection: SUNCLIX (Phoenix Contact)

AC Connection: Quick connection

Mounting Method: wall mount bracket

Screen: LED indicators (status/error/communication)

Communication Interface: Wi-Fi / RS485 (optional)

CERTIFICATIONS and STANDARDS

CE, EN50549, G98/99, VDE-AR-N4105, AS/NZS 4777, C10/C11, VFR 2014 & UTE C15,

IEC62109, IEC62116, IEC61727, IEC61683, IEC60068, IEC61000, NB/T 32004
