MEXXSUN 20 AMPER MPPT SOLAR CHARGING CONTROLLER ML2420 Mppt Charge Controller
Havale ile ödemelerde %2 indirim

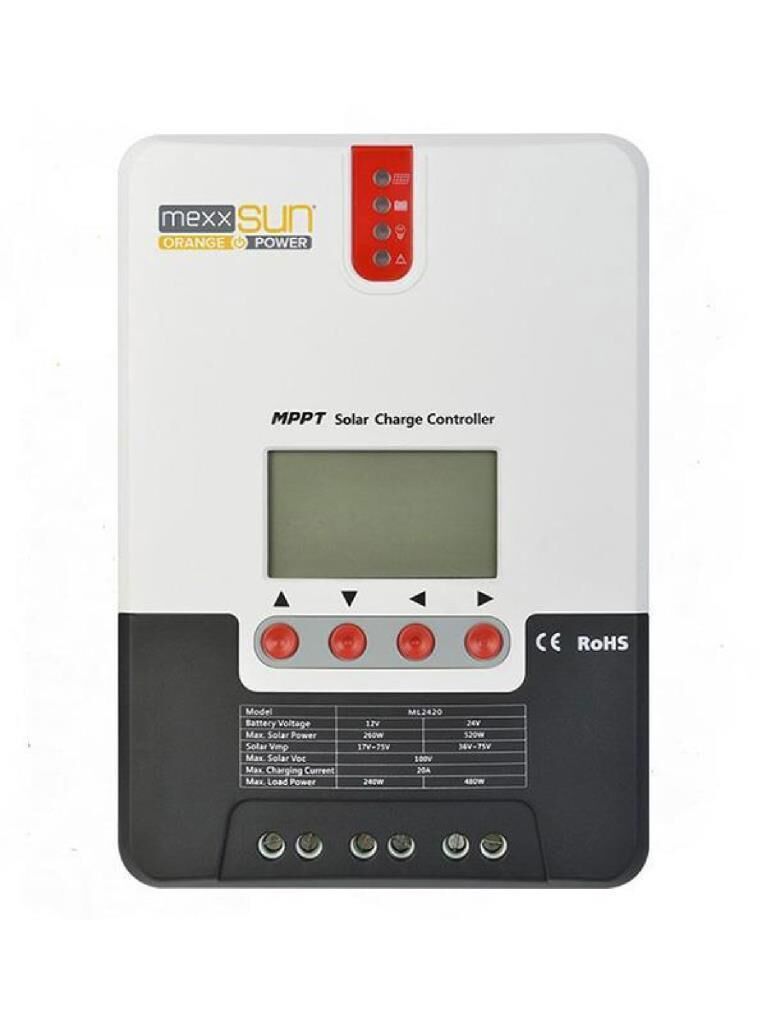

MEXXSUN 20 AMP MPPT SOLAR CHARGING CONTROLLER ML2420
MPPT type solar charge control unit provides approximately 30% increase in efficiency compared to other charge control systems.
The Turkish equivalent of the word MPPT is %27Maximum Power Point Follower %27. Using the energy obtained in all systems at the maximum level has become possible thanks to these electronic devices. There are different types of MPPTs used in wind turbines and solar systems.
Although there are some technical differences according to the areas of use of MPPTs, the way they work in general is the same. Solar MPPT %27 If we take things into consideration , the angle of incidence of the sun's rays on the earth is constantly changing during the day. Accordingly, since the amount of radiation absorbed by the solar panel (photovoltaic cells) will also change, the energy obtained will be different at each time interval. However, in order for the system to function correctly, an increasing and decreasing irregular power supply cannot be given directly to the load. These power values need to be evolved and made regular and efficient. This is where MPPT comes into play. It starts a series of processes by detecting the moments when the different power values obtained at different time intervals are the greatest. It performs these operations by means of complex algorithms in the microcontroller.
| System voltage : | 12/24V |
| Self consumption : | 1W |
| Panel voltage : | < 100 V |
| Panel amperage : | 20.0 A |
| Battery Charge amperage: | 20.0 A |
| Solar Panel Capacity | 260W/12V-520W/24V |
| Operating temperature : | -35...+45 C |
| IP protection : | IP 32 |
| Dimensions : | 210x151x60mm |
| Weight : | 1400 g |
| Indicator : | LCD |
| Load Output Programming | THERE IS |
Teknovation Arge Bilişim Dan. Ltd. Sti. It was established by the Young Entrepreneur Electrical-Electronics Engineer Hamdin Bağçeci as a state-supported R&D company and continues its commercial activities in the field of Solar Electricity Generating Systems, increasing day by day with customer satisfaction.
In solar systems, we try to help our customers as much as possible with the right product and the right price.
A little warning to our customers. They should be careful about the unbranded, unlabeled Solar Panels removed from the power plants and the batteries that are trying to be sold as gel but are not real gel. We would like to share the information that such products are not allowed in our company. Of course, it is important to consider these when making price comparisons.
