MC4 GÜNEŞ PANELİ SOLAR DİŞİ-ERKEK BAĞLANTI KONNEKTÖRÜ 10 LU SET

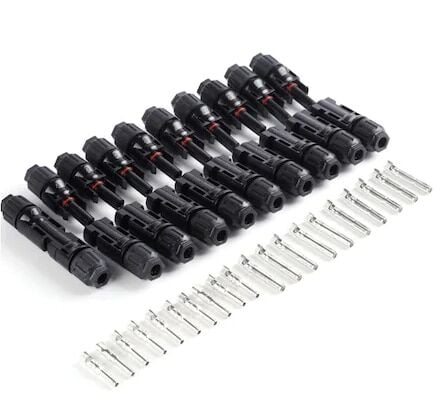

MC4 SOLAR PANEL SOLAR FEMALE-MALE CONNECTOR CONNECTOR SET OF 10

Our connectors are MC4 standard, suitable for use for 4mm, 6mm and 10mm cables. It is a high quality product that complies with many quality standards, especially TÜV Rheinland and CE certification.

Operating voltage: 1000 VDC
Working current: 20A - 30A
Cable cross section: 2.5 mm2 – 6.0 mm2 -10 mm2
Pin size: Φ 4.0 mm
Test voltage: TÜV 6000V AC (1Min) / UL 2200V DC (1Min)
Pollution class: 2
Protection class: Class II
Contact material: Silver plated copper
Contact resistance: ≥ 5 mΩ
Connector outer material: PPO
Protection class: IP68 (IEC 60529)
Withdrawal force: ≥ 50N
Snapping force: ≤ 50N
Temperature range: - 40°C / +85°C
Flame class: UL94V – 0

Teknovation Arge Bilişim Dan. Ltd. Sti. It was established by the Young Entrepreneur Electrical-Electronics Engineer Hamdin Bağçeci as a state-supported R&D company and continues its commercial activities in the field of Solar Electricity Generating Systems, increasing day by day with customer satisfaction.

In solar systems, we try to help our customers as much as possible with the right product and the right price.

A little warning to our customers. They should be careful about the unbranded, unlabeled Solar Panels removed from the power plants and the batteries that are trying to be sold as gel but are not real gel. We would like to share the information that such products are not allowed in our company. Of course, it is important to consider these when making price comparisons.
