İstabreeze Kanat Seti - 107 cm 3'lü Beyaz Kanat Seti Ø2,10m

CHARGING CONTROLLER CONNECTION ISSUES TO BE CONSIDERED!!!

one.        Install the charger close to the battery and in a place that is not hot.

2.        Install the load resistor horizontally away from the battery and controller.

3.        First, connect the + ends of the battery and the charger, then the – ends, then connect the load resistor (resistor) to the load outputs and the 3 phase (ph) inputs from the last turbine.

4.        Check that the terminal connection screws are well tightened.

5.        Check that the charge controller inverter and battery pack are at the same volt.

6.        In order to stop the turbine manually, you can use a switch (63 k automaton or 3x25 on-off pako) between the wind turbine and the charge controller, which will reduce the three-phase short circuit if necessary.

7.        Be sure to ground the body of the pole.

8.        The length of the pole can be around 6-12 meters.

9.        You can mount the pole tightly with ropes from 3 sides against wind jerks.

10.    While the charger is connected to the system, do not drill anywhere on the device with a drill. If you are going to drill for assembly, the device must be in the off position.

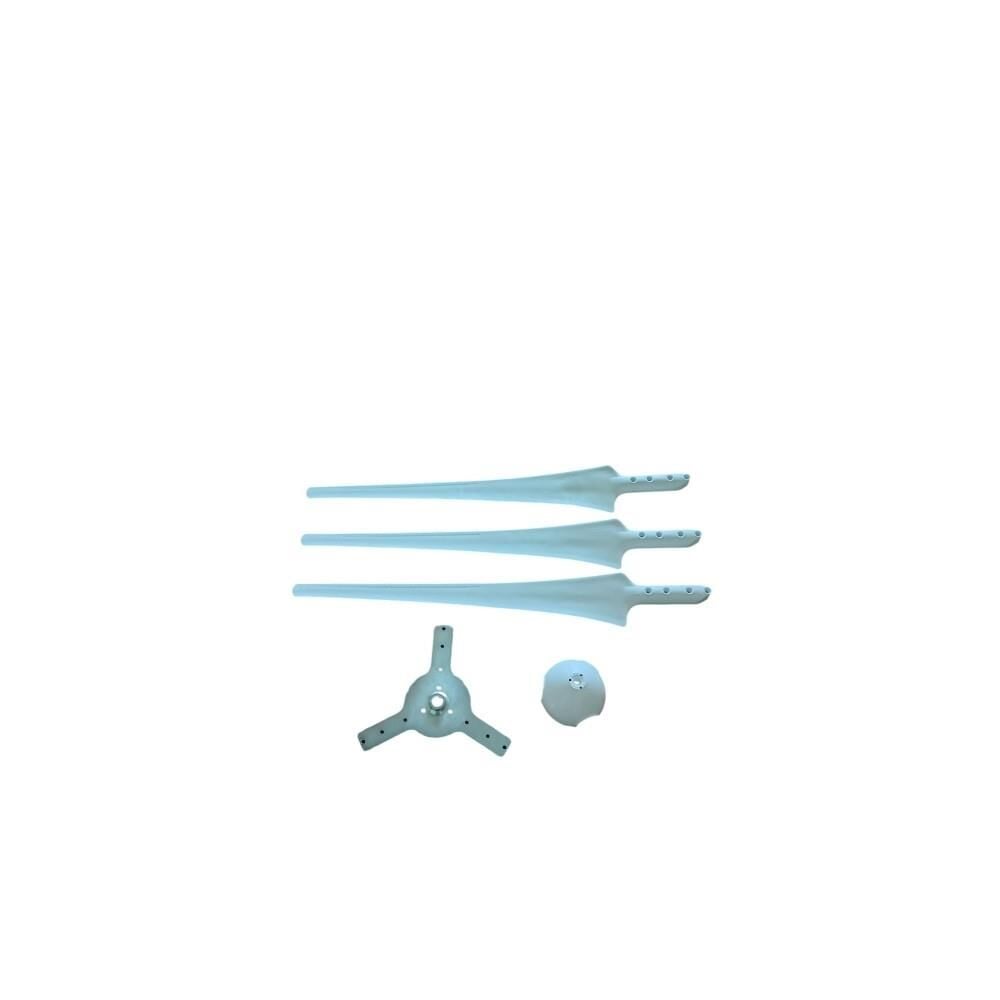

107 cm 3-Wing Set White Ø2,10m

Very quiet, robust replacement blades for wind generators from iSTA Breeze.

Rotor blades made of fiberglass are very durable and tough, but also unusually light for low starting torque.

It provides low noise thanks to the aerodynamic design of the wings and the composite material used.

     wing set

  3x wings

1x aluminum flange

1x nose
