İstaBreeze Direk Seti 4 metre - Rüzgar Türbini için 15 kg taşıma kapasiteli
Mast Set for Wind Turbine 4 meters (15 kg) carrying capacity
Mast Set for 500 watt Wind Turbine
iSTA BREEZE WIND TURBINE POLE Wind turbines are now easy to install, thanks to a specially designed galvanized steel stretch pole.

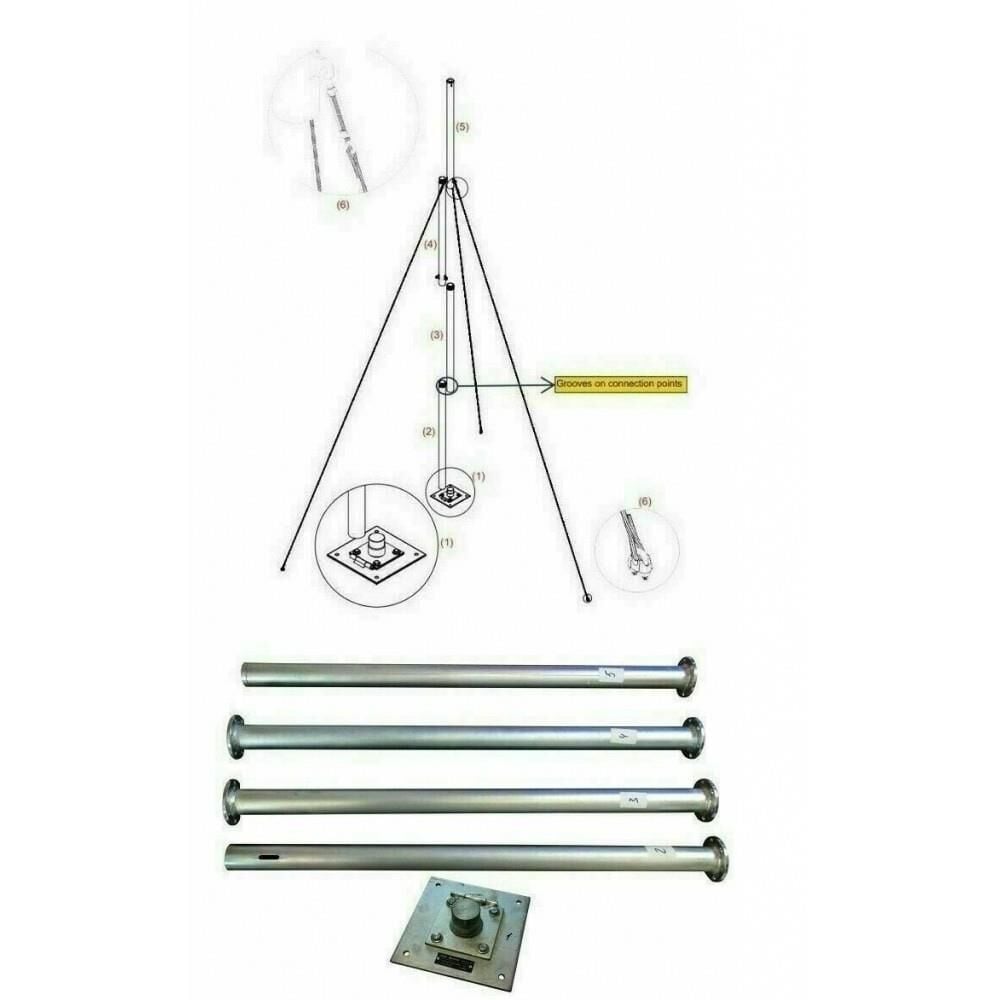

Thanks to its hinged system, one person can easily install it and easily lower the turbine whenever he wants. The mast set consists of four one-metre pipes, a hinged lower phalange, three wire ropes, and nine tensioners.
In addition, it can be extended by a maximum of 10 meters by taking additional one-meter pipes and adding them.
one. Install the charger close to the battery and in a place that is not hot.
2. Mount the load resistor (resistor) horizontally away from the battery and controller.
3. First connect the + ends of the battery and the charger, then the – ends, then connect the load resistor (resistor) to the load outputs and the 3 phase (ph) inputs from the last turbine.
4. Check that the terminal connection screws are well tightened.
5. Check that the charge controller inverter and battery pack are at the same volt.
6. In order to stop the turbine manually, you can use a switch (63 k automaton or 3x25 on-off pako) between the wind turbine and the charge controller, which will reduce the three-phase short circuit if necessary.
7. Be sure to ground the body of the pole.
8. The length of the pole can be around 6-12 meters.
9. You can mount the pole tightly with ropes from 3 sides against wind jerks.
10. While the charger is connected to the system, do not drill anywhere on the device with a drill. If you are going to drill for assembly, the device must be in the off position.
