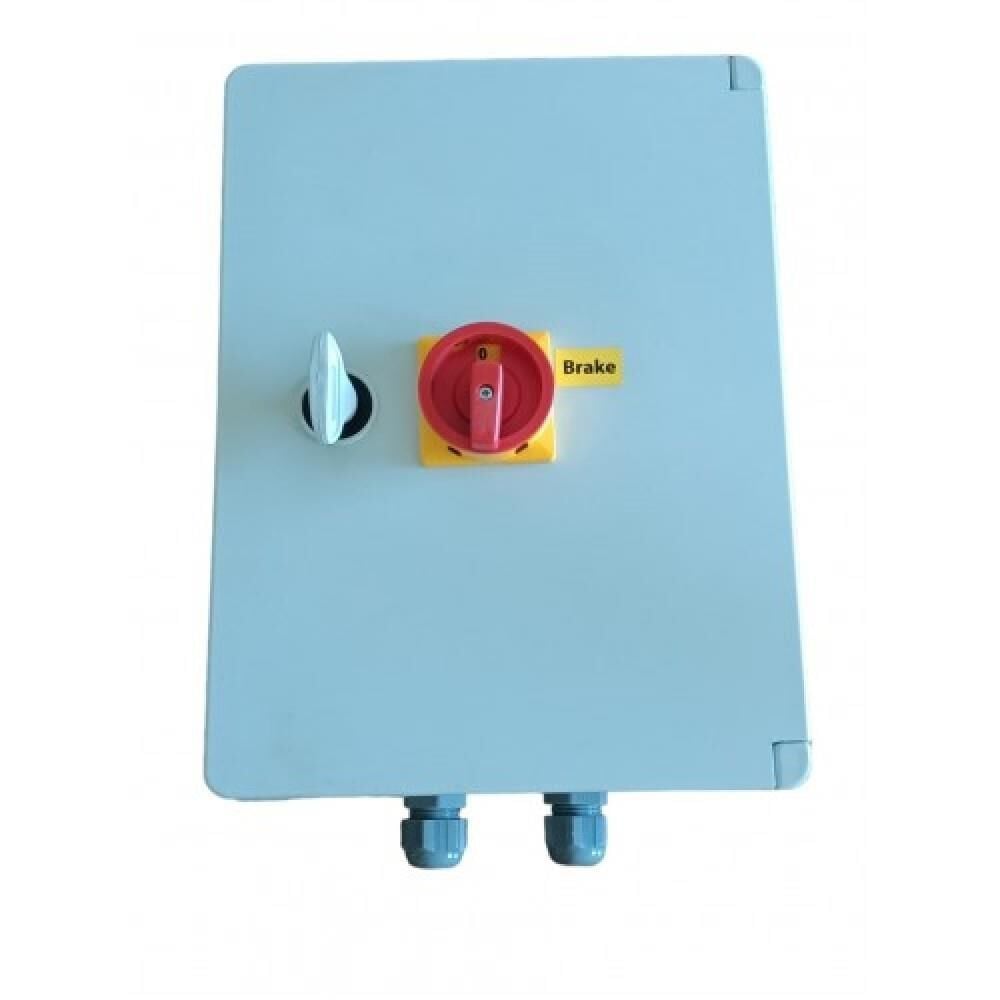

IstaBreeze Manual Brake Switch Three Phase On-Off Charge Controller

Manual Brake Switch Three Phase Open Close iSTA-Breeze

This allows the turbine to be electrically disconnected from the charge controller while at the same time stopping briefly along the turbine exit.

The turbine is braked to near standstill and can then be driven downwind and lowered or tethered mounted.

This switch acts as a temporary stop, which is not used to stop the turbine for a long time. The power of the wind can overcome the dynamic brake and the generated power is then sent back to the stator.

CONSIDERATIONS FOR CHARGING CONTROLLER CONNECTION!!!

one.        Install the charger close to the battery and in a place that is not hot.

2.        Mount the load resistor (resistor) horizontally away from the battery and controller.

3.        First, connect the + ends of the battery and the charger, then the – ends, then connect the load resistor (resistor) to the load outputs and the 3 phase (ph) inputs from the last turbine.

4.        Check that the terminal connection screws are well tightened.

5.        Check that the charge controller inverter and battery pack are at the same volt.

6.        To stop the turbine manually, you can use a three-phase short-circuit switch (63k automaton or 3x25 on-off pako) between the wind turbine and the charge controller, if necessary.

7.        Be sure to ground the body of the pole.

8.        The length of the pole can be around 6-12 meters.

9.        You can mount the pole tightly with ropes from 3 sides against wind jerks.

10.    While the charger is connected to the system, do not drill anywhere on the device with a drill. If you are going to drill for assembly, the device should be in the off position.
