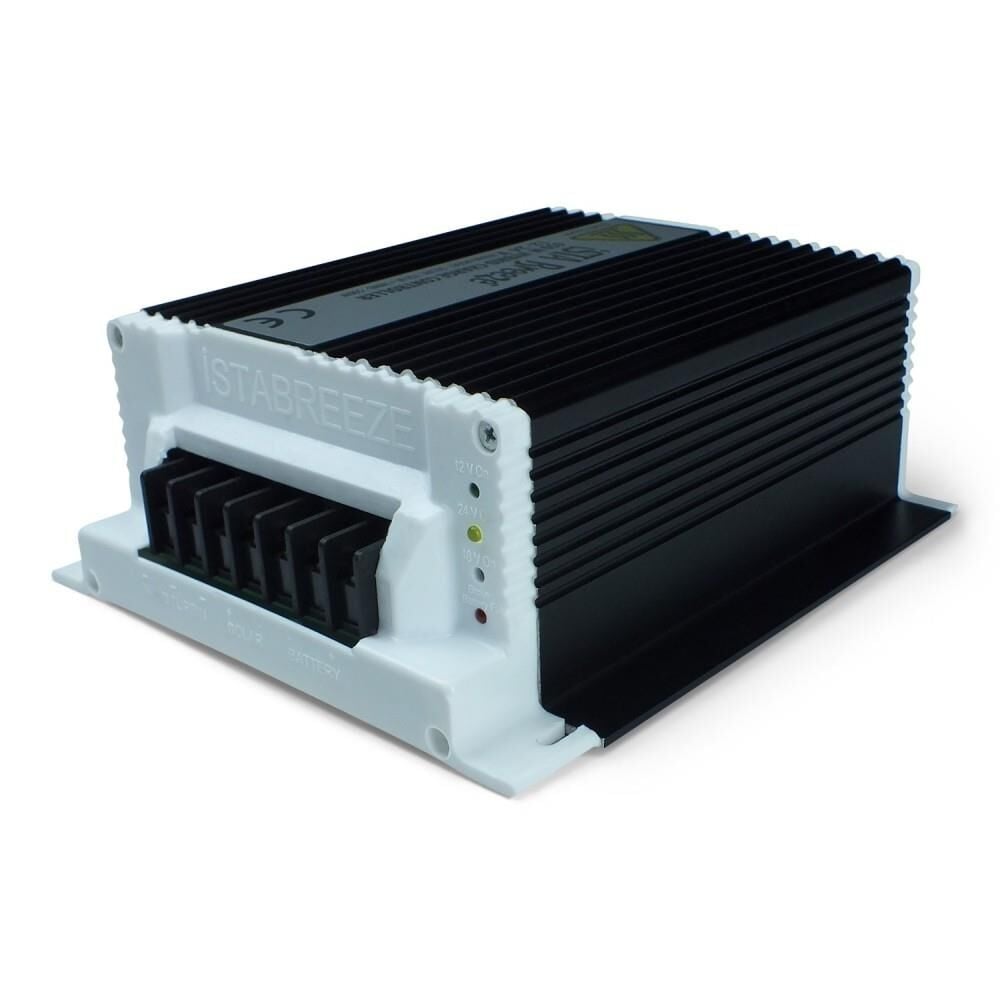

İstaBreeze 850 Watt 48 Volt Hibrit Şarj Kontrol Cihazı
800W 48V Hybrid Charge Controller iSTA-Breeze
PRODUCT FEATURES | |
WEIGHT | 0.6kg |
DIMENSION | 160 x 150 x 60mm |
PROTECTION FEATURE | It brakes when the battery has sufficient charge. |
MODEL | i-850H |
STRENGTH | |
OUTPUT POWER | 850W |
INPUT VOLTAGE RANGE | 48 ~ 57.9V |
MAX. WIND POWER INTRODUCTION | 700W |
MAX. SOLAR POWER INTRODUCTION | 150W |
WIND TURBINE MAX. INPUT CURRENT | 15A |
BATTERY | |
BATTERY | 48V |
RECOMMENDED BATTERY | Minimum 4 PCS 12V / 75 AH Maximum 4 PCS 12V / 100 AH |
CONSIDERATIONS FOR CHARGING CONTROLLER CONNECTION!!!
one. Install the charger close to the battery and in a place that is not hot.
2. Mount the load resistor (resistor) horizontally away from the battery and controller.
3. First connect the + ends of the battery and the charger, then the – ends, then connect the load resistor (resistor) to the load outputs and the 3 phase (ph) inputs from the last turbine.
4. Check that the terminal connection screws are well tightened.
5. Check that the charge controller inverter and battery pack are at the same volt.
6. To stop the turbine manually, you can use a three-phase short-circuit switch (63k automaton or 3x25 on-off pako) between the wind turbine and the charge controller, if necessary.
7. Be sure to ground the body of the pole.
8. The length of the pole can be around 6-12 meters.
9. You can mount the pole tightly with ropes from 3 sides against wind jerks.
10. While the charger is connected to the system, do not drill anywhere on the device with a drill. If you are going to drill for assembly, the device must be in the off position.
