IstaBreeze 2000 Watt 48 Volt Protected Wind Turbine 2 KW
Havale ile ödemelerde %2 indirim

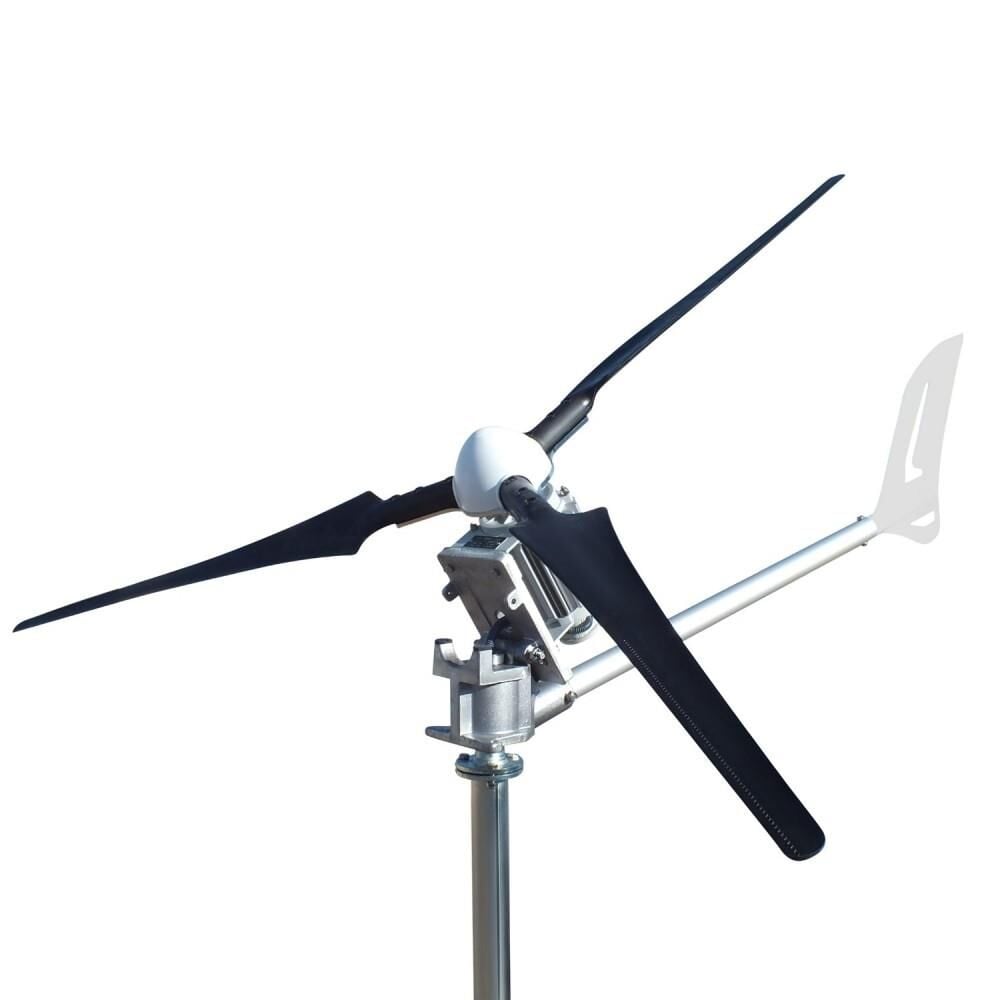

i-2000 2000W 48V Wind Turbine iSTA-Breeze® with Wind Protection
Usage area of iSTA Breeze i-2000, 48 Volt 2000 Watt land type wind generator; It is preferred wherever electricity is needed, in chalets and summer houses.
It provides charging current even at low wind speeds.
Wings with aerodynamic structure have an unbreakable strong structure.
The newly developed IstaBreeze® WindSafe is a wind generator for long-term professional use, reliably providing automatic and unattended energy even under harsh conditions.
iSTA Breeze®'s WindSafe wind turbine model has a revolutionary turbine protection system; The rotor supports the entire structure on a movable platform that raises it 90 degrees in stormy or very windy weather. Thus, the repellent changes with the wind, reducing the frontal attack and the rotation is reduced. This protects the turbine from hurricanes or strong winds. This robust construction ensures the turbines' long life, making it a unique system in the mini wind generators category.
The generous sizing of the generator components and the aluminum body of the generator provide heat dissipation thanks to the cooling channels, providing long-lasting use even at low ambient temperatures.
CHARGER CONTROLLER IS NOT INCLUDED IN THE PRICE, YOU CAN BUY IT SEPARATELY FROM OUR PAGE.
CONSIDERATIONS FOR CHARGING CONTROLLER CONNECTION!!!
one. Install the charger close to the battery and in a place that is not hot.
2. Mount the load resistor (resistor) horizontally away from the battery and controller.
3. First connect the + ends of the battery and the charger, then the – ends, then connect the load resistor (resistor) to the load outputs and the 3 phase (ph) inputs from the last turbine.
4. Check that the terminal connection screws are well tightened.
5. Check that the charge controller inverter and battery pack are at the same volt.
6. To stop the turbine manually, you can use a three-phase short-circuit switch (63k automaton or 3x25 on-off pako) between the wind turbine and the charge controller, if necessary.
7. Be sure to ground the body of the pole.
8. The length of the pole can be around 6-12 meters.
9. You can mount the pole tightly with ropes from 3 sides against wind jerks.
10. While the charger is connected to the system, do not drill anywhere on the device with a drill. If you are going to drill for assembly, the device must be in the off position.
| Support Elements | |
| Weight (including alternator) | 25kg |
| Power Transmission | Slip ring so that the cable cannot be bent. (pre-mounted on support element) |
| Material | aluminum casting |
| Automatic Path Circuit | 14 m/s (with rotor tilted) |
| WIND TURBINE | |
| SYSTEM VOLTAGE | 48V DC |
| PRODUCT FEATURES - WIND TURBINE | |
| Flow | Max 40A |
| Alternator Body | Aluminum |
| Evaluated Power | 2000w |
| Generator | 3-phase permanent magnet (High efficiency thanks to strong permanent magnets (NdFeB magnets, temperature resistant to 150°) (The threading of our copper winding is done by hand only.) |
| WING FEATURES | |
| Weight | 650g (1 wing) |
| Diameter | 220 cm |
| MATERIAL | Carbon |
| Colour | black or white |
| Volume | 40db |
| LENGTH | 107 cm |
| PACKAGE INCLUDED | |
| Alternator | 1 Piece |
| NOSE | 1 Piece |
| FLANGE | 1 Piece |
| WINGS | 3 pieces |
| User guide | 1 Piece |
| Mounting Screws | 1 Set |
| REQUIRED EQUIPMENT | |
| BATTERY | Minimum 48v 150 Ah (4x150) Ah |
| CONTROLLER | |
