Istabreeze 1000 W 48 V Wind Turbine + Domestic Charge Controller Wind Turbine Set
CHARGING CONTROLLER CONNECTION ISSUES TO BE CONSIDERED!!!
MOUNT THE CHARGER CLOSE TO THE BATTERY AND IN A PLACE THAT IS NOT HOT.
INSTALL THE LOAD RESISTOR HORIZONTALLY AWAY FROM THE BATTERY AND CONTROLLER.
CONNECT THE + TERMINALS OF THE BATTERY AND CHARGER FIRST, THEN CONNECT THE LOAD RESISTANCE CONNECTION TO LOOD OUTPUTS AND THE 3 PHASE FROM THE LAST TURBINE TO THE INPUT (PH) IN ORDER.
CHECK THAT THE TERMINAL CONNECTION SCREWS ARE WELL TIGHTEN.
CHECK THAT THE CHARGER INVERTER AND BATTERY PACK ARE AT THE SAME VOLTAGE.
TO MANUALLY STOPPING THE TURBINE, YOU CAN USE A SWITCH (63 K AUTOMATIC OR 3X25 OPEN OFF PACK) BETWEEN THE WIND TURBINE AND THE CHARGER, WHEN NEEDED, TO REDUCE THREE PHASE SHORT CIRCUIT.
MUST GROUND THE BODY OF THE POLE.
THE LENGTH OF THE POLE MAY BE APPROXIMATELY 6-12 METERS.
YOU CAN MOUNT THE POLE TIGHTLY WITH ROPES ON 3 SIDES AGAINST JUDGES IN THE WIND.
DO NOT DRILL ANYWHERE OF THE DEVICE WHILE THE CHARGER IS CONNECTED TO THE SYSTEM.

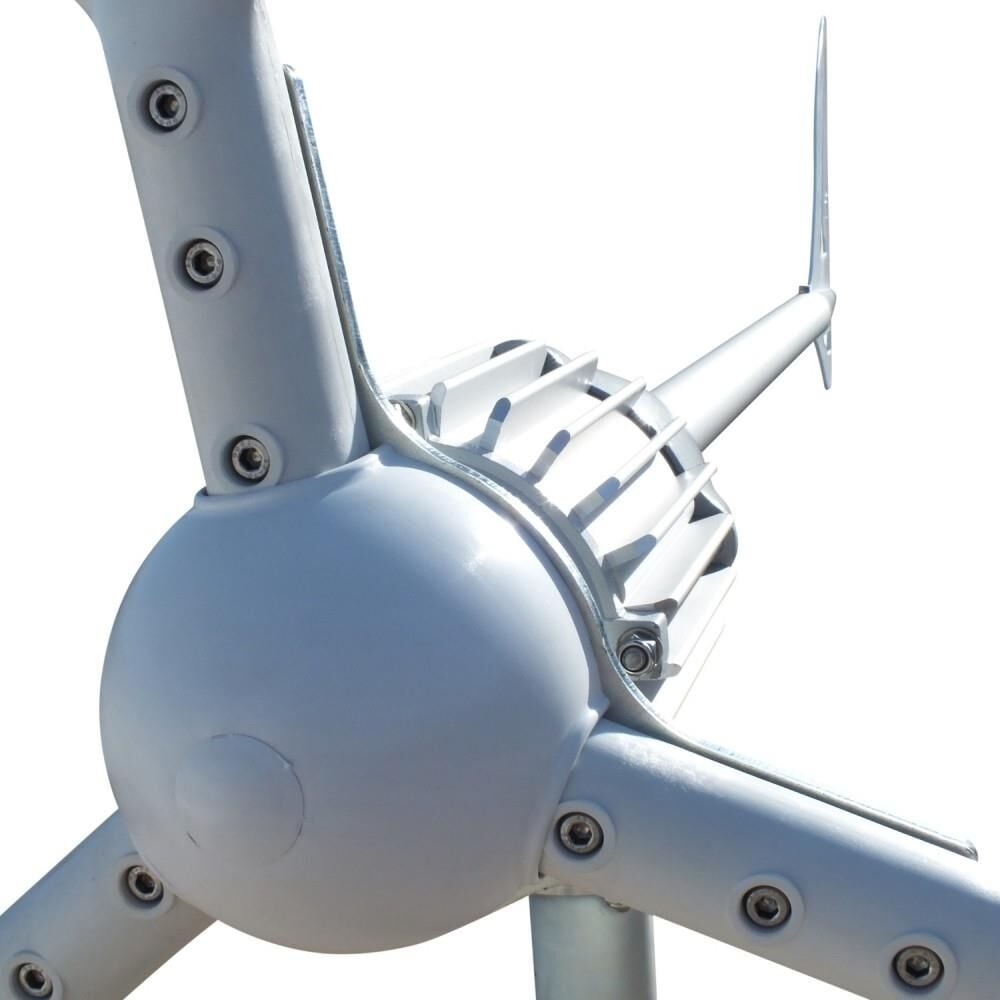

İSTA BREEZE 1000 WATT 48 VOLT Wind Turbine İ-1000
iSTABreeze i-1000 48 v 1200 Watt Land type wind generator It is preferred in chalets and summer houses wherever its usage area needs electricity. It provides charging current even at low wind speeds. The aerodynamic blades have an unbreakable strong structure. Robust wind generator The original iSTA-Breeze i-1000 / 48V composite rotor blades are also unusually light, very durable and stable. The body is made of aluminum material, which guarantees the best cooling of the generator. The maintenance-free slip contact (without charcoal) guarantees a good current flow and therefore ensures that the cable is not twisted in the pole.
Installation on pole pipe with cable connection. Required mast pipe nominal diameter: 37mm nominal size! Other technical data are described in more detail in the description. This product has been successfully used 1000 times around the world! You can find matching charge controllers and poles in our store! It can also be used with photovoltaic solar cells with our 48 volt hybrid charge controller.
