İSTA Breeze 1000 Watt 24 V Rüzgar Türbini + Şarj Kontrol Cihazı
CHARGING CONTROLLER CONNECTION ISSUES TO BE CONSIDERED!!!
one. MOUNT THE CHARGER CLOSE TO THE BATTERY AND IN A PLACE THAT IS NOT HOT.
2. INSTALL THE LOAD RESISTOR HORIZONTALLY AWAY FROM THE BATTERY AND CONTROLLER.
3. CONNECT THE + TERMINALS OF THE BATTERY AND CHARGER FIRST, THEN CONNECT THE LOAD RESISTANCE CONNECTION TO LOOD OUTPUTS AND THE 3 PHASE FROM THE LAST TURBINE TO THE INPUT (PH) IN ORDER.
4. CHECK THAT THE TERMINAL CONNECTION SCREWS ARE WELL TIGHTEN.
5. CHECK THAT THE CHARGER INVERTER AND BATTERY PACK ARE AT THE SAME VOLTAGE.
6. TO MANUALLY STOPPING THE TURBINE, YOU CAN USE A SWITCH (63 K AUTOMATIC OR 3X25 OPEN OFF PACK) BETWEEN THE WIND TURBINE AND THE CHARGER, WHEN NEEDED, TO REDUCE THREE PHASE SHORT CIRCUIT.
7. MUST GROUND THE BODY OF THE POLE.
8. THE LENGTH OF THE POLE MAY BE APPROXIMATELY 6-12 METERS.
9. YOU CAN MOUNT THE POLE TIGHTLY WITH ROPES ON 3 SIDES AGAINST JUDGES IN THE WIND.
10. DO NOT DRILL ANYWHERE OF THE DEVICE WHILE THE CHARGER IS CONNECTED TO THE SYSTEM.
1000 watt 24 Volt and 48 Volt compatible charge controller with LCD Screen is included in the price.

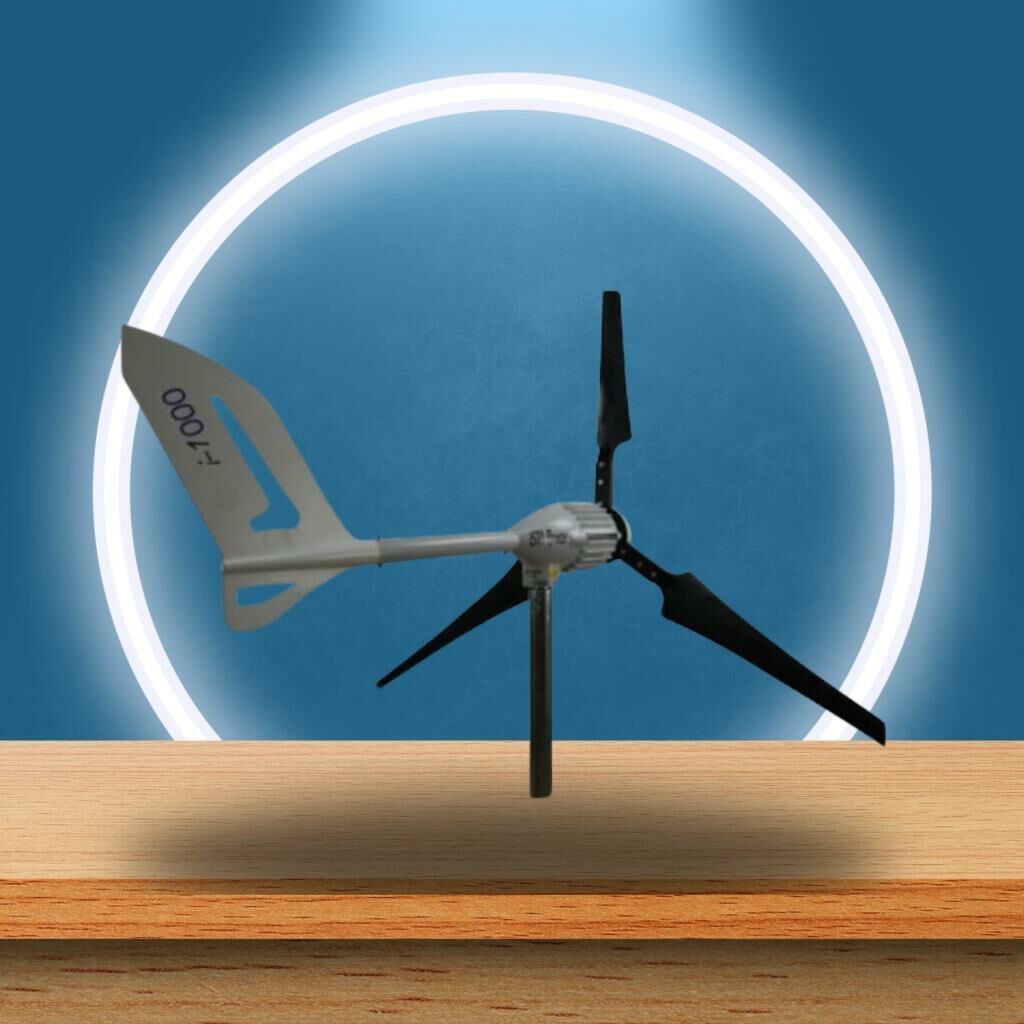

iSTA Breeze i-1000 24 Volt 1200 Watt Land type wind generator
It is preferred in chalets and summer houses wherever the usage area needs electricity.
It provides charging current even at low wind speeds.
Wings with aerodynamic structure have an unbreakable strong structure.
| PRODUCT FEATURES | |
| WEIGHT | 20 |
| DIMENSION | 21 x 61 x 41 (2 PACKS) |
| DECIBEL | 40dB |
| DIRECT | NO |
| BODY MATERIAL | ALUMINUM |
| COLOUR | WHITE |
| WIND SPEED | |
| INITIAL WIND SPEED | 2m/s |
| CUT WIND SPEED | 60m/s |
| OPTIMUM WIND SPEED | 12.5m/s |
| STRENGTH | |
| AMPERE | 40 amp |
| MAXIMUM POWER | 1200W |
| AVERAGE POWER | 1000W |
| VOLTAGE | 24V-AC |
| WING FEATURES | |
| WEIGHT | 600 g (1 WING) |
| MATERIAL | COMPOSITE |
| ROTOR DIAMETER | 200 cm |
| LENGTH | 107cm |
| PACKAGE INCLUDED | |
| CONNECTION SCREWS | 1 set |
| NOSE | 1 pc |
| FLANGE | 1 pc |
| BODY | 1 pc |
| WINGS | 3 pieces |
| User guide | 1 pc |
| TAIL - TAIL PIPE | 1 pc |
| REQUIRED EQUIPMENT | |
| BATTERY | min. 300 Amps |
| CONNECTION CABLE | |
| DIRECT | |
| CONTROLLER | |
