İ-700 WATT 12 V Wind Turbine + Hybrid Charge Controller Wind Turbine Set
CHARGING CONTROLLER CONNECTION ISSUES TO BE CONSIDERED!!!
one. MOUNT THE CHARGER CLOSE TO THE BATTERY AND IN A PLACE THAT IS NOT HOT.
2. INSTALL THE LOAD RESISTOR HORIZONTALLY AWAY FROM THE BATTERY AND CONTROLLER.
3. CONNECT THE + TERMINALS OF THE BATTERY AND CHARGER FIRST, THEN CONNECT THE LOAD RESISTANCE CONNECTION TO LOOD OUTPUTS AND THE 3 PHASE FROM THE LAST TURBINE TO THE INPUT (PH) IN ORDER.
4. CHECK THAT THE TERMINAL CONNECTION SCREWS ARE WELL TIGHTEN.
5. CHECK THAT THE CHARGER INVERTER AND BATTERY PACK ARE AT THE SAME VOLTAGE.
6. TO MANUALLY STOPPING THE TURBINE, YOU CAN USE A SWITCH (63 K AUTOMATIC OR 3X25 OPEN OFF PACK) BETWEEN THE WIND TURBINE AND THE CHARGER, WHEN NEEDED, TO REDUCE THREE PHASE SHORT CIRCUIT.
7. MUST GROUND THE BODY OF THE POLE.
8. THE LENGTH OF THE POLE MAY BE APPROXIMATELY 6-12 METERS.
9. YOU CAN MOUNT THE POLE TIGHTLY WITH ROPES ON 3 SIDES AGAINST JUDGES IN THE WIND.
10. DO NOT DRILL ANYWHERE OF THE DEVICE WHILE THE CHARGER IS CONNECTED TO THE SYSTEM.

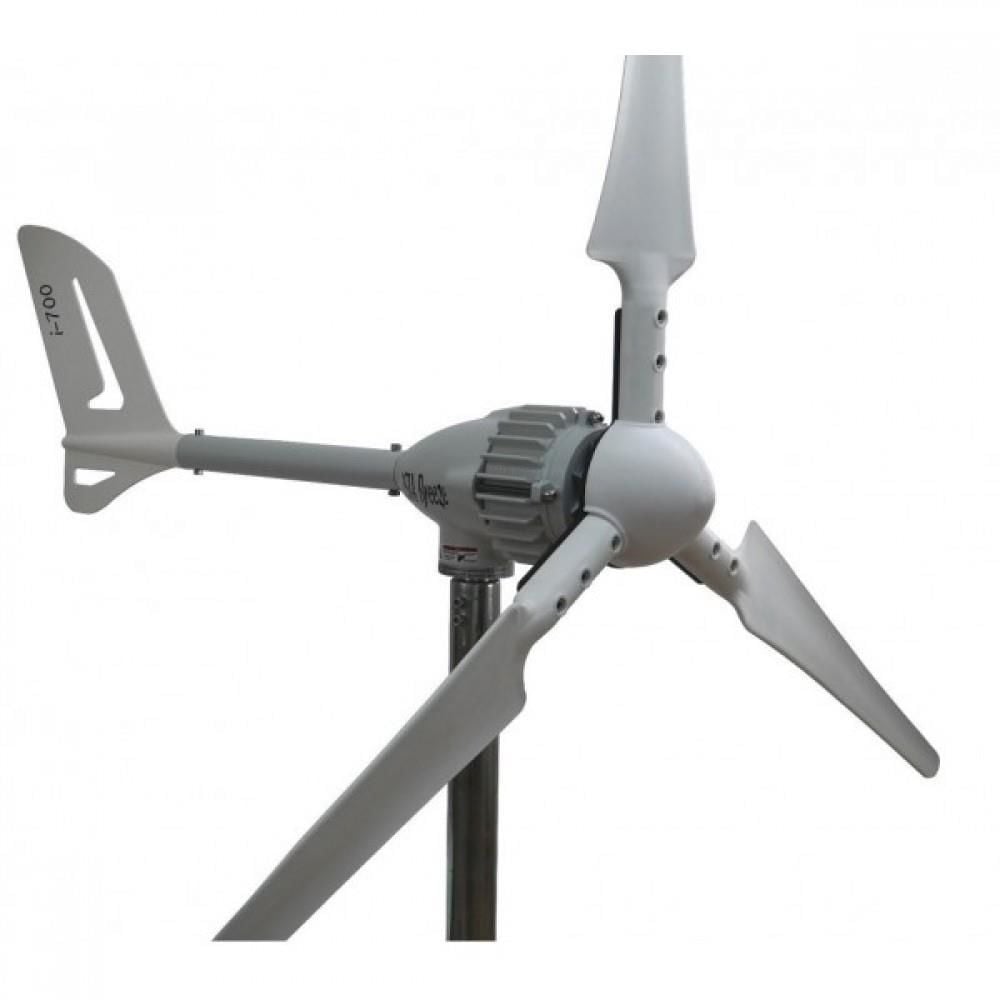

ISTA BREEZE I-700 W 12 V Wind Turbine + Hybrid Charge Controller
Robust wind generator original IstaBreeze® i-700 / 12V set.
Composite rotor blades are unusually light, very durable and stable. The body is made of aluminum, which ensures the best cooling of the generator.
The maintenance-free slip contact (without charcoal) guarantees a good current flow and therefore ensures that the cable is not twisted in the pole. Installation on pole pipe with cable connection. Required post pipe inner diameter: 37mm. IstaBreeze®'s Wind/Solar hybrid charge controller is an intelligent controller of the wind turbine and solar cells simultaneously controlling you. The high-end device thus controls your system. It is used to safely and efficiently charge and control your battery with a Wind Generator / Solar Module combination. With its rugged appearance, simple operation and integrated protection functions, this device has high efficiency and low load losses. This version of the control unit will significantly increase the life and stability of the entire system, especially the batteries.
Special features and product information are listed below:
· Use of solid state components. Increasing the lifetime of the controller.
· Microprocessor controlled charging with integrated voltage and current limiting.
· Electromagnetic brake control, the generator automatically brakes slowly when the battery is full, modern three-step braking system to prevent the turbine from blocking instantly. Increasing the life of the stator.
· Protection against overcharge, deep discharge, short circuit, overload and false reverse polarity.
| PRODUCT FEATURES - WIND TURBINE | |
| Flow | Max 60 Ah |
| Evaluated Power | 700W |
| Body Support Element | Cast and aluminum (painted) |
| Generator | Aluminum profile (painted) |
| Voltage | 12V (AC) |
| PRODUCT FEATURES | |
| WEIGHT | 15 Kg |
| WIND SPEED | |
| INITIAL WIND SPEED | 2m/s |
| OPTIMUM WIND SPEED | 12-15 m/s |
| WING FEATURES | |
| Weight | 621g (1 wing) |
| Material | Composite |
| Colour | white or black |
| Rotor Diameter | 190cm |
| Volume | 40db |
| Length | 90cm |
| PACKAGE INCLUDED | |
| Alternator | 1 pc |
| NOSE | 1 pc |
| FLANGE | 1 pc |
| WINGS | 3 pieces |
| User guide | 1 pc |
| Mounting Screws | 1 set |
| REQUIRED EQUIPMENT | |
| BATTERY | suitable battery group 12v 200 Ah (1 x 200 or 2x150) Ah |
| Direct | |
| Charge Controller | |
| EXTENSION CABLE | |
| PRODUCT FEATURES | |
| WEIGHT | 0.6kg |
| DIMENSION | 160 x 150 x 60mm |
| PROTECTION FEATURE | It brakes when the battery has sufficient charge. |
| MODEL | i-850H |
| STRENGTH | |
| OUTPUT POWER | 850W |
| INPUT VOLTAGE RANGE | 48 ~ 57.9V |
| MAX. WIND POWER INTRODUCTION | 700W |
| MAX. SOLAR POWER INTRODUCTION | 150W |
| WIND TURBINE MAX. INPUT CURRENT | 15A |
| BATTERY | |
| BATTERY | 48V |
| RECOMMENDED BATTERY | Minimum 4 PCS 12V / 75 AH Maximum 4 PCS 12V / 100 AH |
