İ-500 WATT 12V/24Volt Wind Turbine + Hybrid Charge Controller Wind Turbine Set
CHARGING CONTROLLER CONNECTION ISSUES TO BE CONSIDERED!!!
one. MOUNT THE CHARGER CLOSE TO THE BATTERY AND IN A PLACE THAT IS NOT HOT.
2. INSTALL THE LOAD RESISTOR HORIZONTALLY AWAY FROM THE BATTERY AND CONTROLLER.
3. CONNECT THE + TERMINALS OF THE BATTERY AND CHARGER FIRST, THEN CONNECT THE LOAD RESISTANCE CONNECTION TO LOOD OUTPUTS AND THE 3 PHASE FROM THE LAST TURBINE TO THE INPUT (PH) IN ORDER.
4. CHECK THAT THE TERMINAL CONNECTION SCREWS ARE WELL TIGHTEN.
5. CHECK THAT THE CHARGER INVERTER AND BATTERY PACK ARE AT THE SAME VOLTAGE.
6. TO MANUALLY STOPPING THE TURBINE, YOU CAN USE A SWITCH (63 K AUTOMATIC OR 3X25 OPEN OFF PACK) BETWEEN THE WIND TURBINE AND THE CHARGER, WHEN NEEDED, TO REDUCE THREE PHASE SHORT CIRCUIT.
7. MUST GROUND THE BODY OF THE POLE.
8. THE LENGTH OF THE POLE MAY BE APPROXIMATELY 6-12 METERS.
9. YOU CAN MOUNT THE POLE TIGHTLY WITH ROPES ON 3 SIDES AGAINST JUDGES IN THE WIND.
10. DO NOT DRILL ANYWHERE OF THE DEVICE WHILE THE CHARGER IS CONNECTED TO THE SYSTEM.

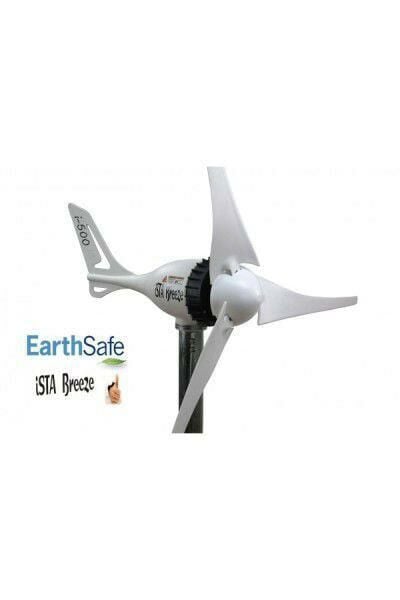

İSTA BREEZE İ-500 Wind Turbine + Hybrid Charge Controller
500W wind turbine 12volt or 24volt models, please send a message
650W hybrid charge controller
PRODUCT FEATURES - WIND TURBINE Alternator Body ALUMINUM PRODUCT FEATURES WEIGHT 5 kg DECIBEL 40dB DIRECT NO BODY MATERIAL COMPOSITE WIND SPEED INITIAL WIND SPEED 2m/S OPTIMUM WIND SPEED 17-20m/s STRENGTH AMPERE 40 amp MAXIMUM POWER 450W AVERAGE POWER 400W VOLTAGE 12V-AC WING FEATURES WEIGHT 180g WIDTH 13cm(4.6in) MATERIAL COMPOSITE ROTOR DIAMETER 103cm LENGTH 50cm PACKAGE INCLUDED CONNECTION SCREWS 1 set NOSE 1 pc FLANGE 1 pc BODY 1 pc WINGS 3 pieces User guide 1 pc REQUIRED EQUIPMENT BATTERY Suitable battery group 12v 150 Ah (1x150 or 2x100) Ah
| PRODUCT FEATURES - WIND TURBINE | |
| Alternator Body | ALUMINUM |
| PRODUCT FEATURES | |
| WEIGHT | 5 kg |
| DECIBEL | 40dB |
| DIRECT | NO |
| BODY MATERIAL | COMPOSITE |
| WIND SPEED | |
| INITIAL WIND SPEED | 2m/S |
| OPTIMUM WIND SPEED | 17-20m/s |
| STRENGTH | |
| AMPERE | 40 amp |
| MAXIMUM POWER | 450W |
| AVERAGE POWER | 400W |
| VOLTAGE | 12V-AC |
| WING FEATURES | |
| WEIGHT | 180g |
| WIDTH | 13cm(4.6in) |
| MATERIAL | COMPOSITE |
| ROTOR DIAMETER | 103cm |
| LENGTH | 50cm |
| PACKAGE INCLUDED | |
| CONNECTION SCREWS | 1 set |
| NOSE | 1 pc |
| FLANGE | 1 pc |
| BODY | 1 pc |
| WINGS | 3 pieces |
| User guide | 1 pc |
| REQUIRED EQUIPMENT | |
| BATTERY | Suitable battery group 12v 150 Ah (1x150 or 2x100) Ah |
| PRODUCT FEATURES | |
| WEIGHT | 0.6kg |
| DIMENSION | 160 x 150 x 60mm |
| PROTECTION FEATURE | It brakes when the battery is sufficiently charged or in a storm. |
| MODEL | i-650H |
| STRENGTH | |
| OUTPUT POWER | 650W |
| INPUT VOLTAGE RANGE | 16~12V |
| MAX. WIND POWER INTRODUCTION | 500W |
| MAX. SOLAR POWER INTRODUCTION | 150W |
| WIND TURBINE MAX. INPUT CURRENT | 40A |
| BATTERY | |
| BATTERY | 12V |
| RECOMMENDED BATTERY | 1 PCS 12V / 150AH |
