İ-2000W 48V Wind Turbine + Hybrid Charge Controller Wind Turbine Set
CHARGING CONTROLLER CONNECTION ISSUES TO BE CONSIDERED!!!
one. MOUNT THE CHARGER CLOSE TO THE BATTERY AND IN A PLACE THAT IS NOT HOT.
2. INSTALL THE LOAD RESISTOR HORIZONTALLY AWAY FROM THE BATTERY AND CONTROLLER.
3. CONNECT THE + TERMINALS OF THE BATTERY AND CHARGER FIRST, THEN CONNECT THE LOAD RESISTANCE CONNECTION TO LOOD OUTPUTS AND THE 3 PHASE FROM THE LAST TURBINE TO THE INPUT (PH) IN ORDER.
4. CHECK THAT THE TERMINAL CONNECTION SCREWS ARE WELL TIGHTEN.
5. CHECK THAT THE CHARGER INVERTER AND BATTERY PACK ARE AT THE SAME VOLTAGE.
6. TO MANUALLY STOPPING THE TURBINE, YOU CAN USE A SWITCH (63 K AUTOMATIC OR 3X25 OPEN OFF PACK) BETWEEN THE WIND TURBINE AND THE CHARGER, WHEN NEEDED, TO REDUCE THREE PHASE SHORT CIRCUIT.
7. MUST GROUND THE BODY OF THE POLE.
8. THE LENGTH OF THE POLE MAY BE APPROXIMATELY 6-12 METERS.
9. YOU CAN MOUNT THE POLE TIGHTLY WITH ROPES ON 3 SIDES AGAINST JUDGES IN THE WIND.
10. DO NOT DRILL ANYWHERE OF THE DEVICE WHILE THE CHARGER IS CONNECTED TO THE SYSTEM.

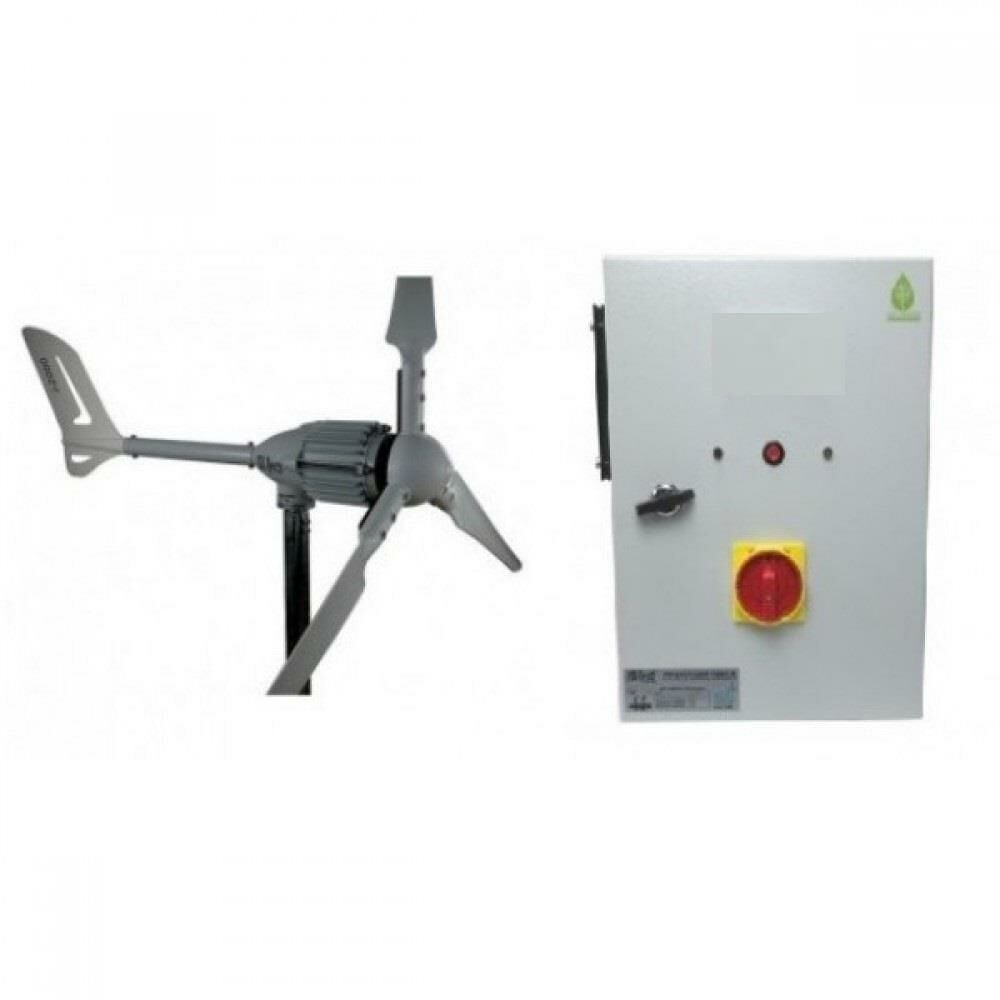

İ-2000W 48V Wind Turbine + Hybrid Charge Controller
Wind generator Original iSTA-Breeze i-2000
Composite rotor blades are also unusually light, very durable and stable. The enclosure is equipped with cooling fins and is made of high-strength aluminum. The maintenance-free sliding contact (without charcoal) guarantees a good current flow and therefore ensures that the cable inside the pole is not twisted. mounting on pole pipe with cable connection. Required pole tube inner diameter: 37 mm nominal size! Other technical data are described in more detail in the description. This product has been successfully used at least 1000 times worldwide! 2 years manufacturer's warranty!
Charge Controller product description:
IstaBreeze®'s Wind/Solar Hybrid Charge Controller is an intelligent controller of wind turbine and solar panels that simultaneously controls you. The high-end device can also be used as a monitoring system. It is used to safely and efficiently charge and control your battery with a Wind Generator / Solar Module combination. With its rugged appearance, simple operation and integrated protection functions, this device features high efficiency and low load losses. This version of the control unit will significantly increase the life and stability of the entire system, especially the batteries. In addition, the control electronics in the control cabinet monitor the system voltage and max. Over voltage.
Special features and product information are listed below: Use of external and high quality (Triacs & Hyper Mosfet) solid state components. Increasing the lifetime of the controller. Microprocessor controlled charging with integrated voltage and current limiting. Electromagnetic brake control. Integrated 3-phase short-circuit switches (brake switch) Protection against lightning strikes. Protection against overcharge, deep discharge, short circuit, overload and false reverse polarity. Integrated display When the battery is full, the generator automatically brakes slowly, modern braking system with external load resistor (Discharge Load) to prevent the turbine from blocking immediately. It increases the life of the stator.
