İ-1000 WATT 24 V Rüzgar Türbini + Hibrit Şarj Kontrol Cihazı
CHARGING CONTROLLER CONNECTION ISSUES TO BE CONSIDERED!!!
one. MOUNT THE CHARGER CLOSE TO THE BATTERY AND IN A PLACE THAT IS NOT HOT.
2. INSTALL THE LOAD RESISTOR HORIZONTALLY AWAY FROM THE BATTERY AND CONTROLLER.
3. CONNECT THE + TERMINALS OF THE BATTERY AND CHARGER FIRST, THEN CONNECT THE LOAD RESISTANCE CONNECTION TO LOOD OUTPUTS AND THE 3 PHASE FROM THE LAST TURBINE TO THE INPUT (PH) IN ORDER.
4. CHECK THAT THE TERMINAL CONNECTION SCREWS ARE WELL TIGHTEN.
5. CHECK THAT THE CHARGER INVERTER AND BATTERY PACK ARE AT THE SAME VOLTAGE.
6. TO MANUALLY STOPPING THE TURBINE, YOU CAN USE A SWITCH (63 K AUTOMATIC OR 3X25 OPEN OFF PACK) BETWEEN THE WIND TURBINE AND THE CHARGER, WHEN NEEDED, TO REDUCE THREE PHASE SHORT CIRCUIT.
7. MUST GROUND THE BODY OF THE POLE.
8. THE LENGTH OF THE POLE MAY BE APPROXIMATELY 6-12 METERS.
9. YOU CAN MOUNT THE POLE TIGHTLY WITH ROPES ON 3 SIDES AGAINST JUDGES IN THE WIND.
10. DO NOT DRILL ANYWHERE OF THE DEVICE WHILE THE CHARGER IS CONNECTED TO THE SYSTEM.

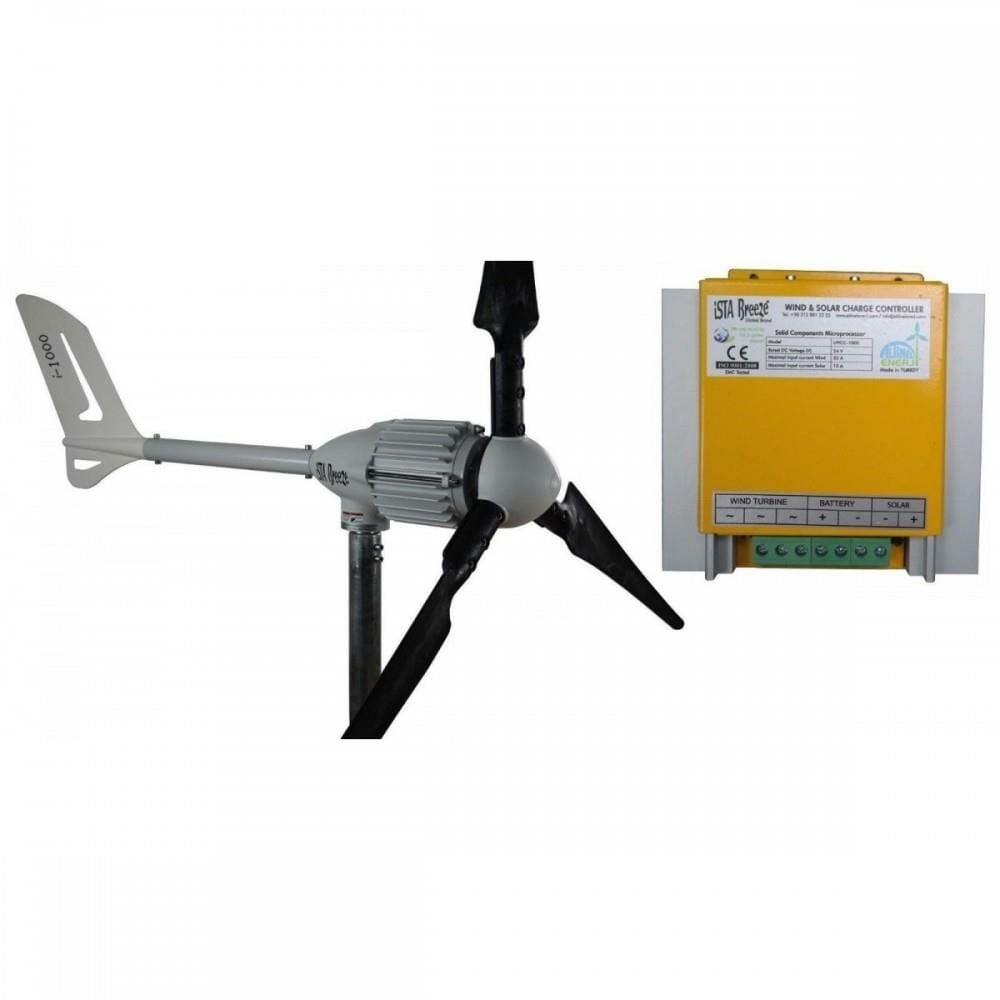

ISTA BREEZE I-1000 W 24 V Wind Turbine + Hybrid Charge Controller
Original wind generator iSTA Breeze i-1000
Extremely robust wind generator of the last generation. Composite rotor blades are very durable and robust, and are also unusually light.
The body is equipped with cooling fins and is made of high-strength aluminum. The maintenance-free slip contact (without charcoal) guarantees a good current flow and therefore ensures that the cable is not twisted in the pole.
mounting on pole pipe with cable connection. Required pole tube inner diameter: 37 mm nominal size! Other technical data are described in more detail in the description.
This product has been successfully used 1000 times around the world! You can find matching charge controllers and poles in our store! It can also be used with photovoltaic solar cells with our 24 volt charge controller.
Product Description:
IstaBreeze®'s wind/solar hybrid charger is intelligent control of the wind turbine and solar cells you control simultaneously.
The high-end device can also be used as a monitoring system. It is used to safely and efficiently charge and control your battery with a Wind Generator / Solar Module combination.
With its rugged appearance, simple operation and integrated protection functions, this device has high efficiency and low load losses.
This version of the control unit will significantly increase the life and stability of the entire system, especially the batteries.
Special features and product information are listed below:
· Use of solid state components. Increasing the lifetime of the controller.
· Microprocessor controlled charging with integrated voltage and current limiting.
· Electromagnetic brake control, the generator automatically brakes slowly when the battery is full, modern three-step braking system to prevent the turbine from blocking instantly. Increases the life of the stator.
· Protection against overcharge, deep discharge, short circuit, overload and false reverse polarity.
· USB port with possibility of external display.
