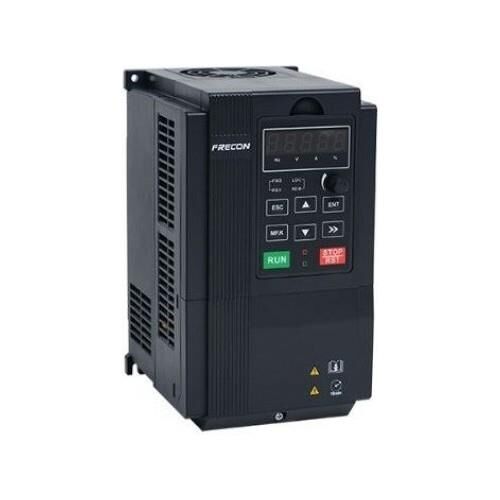

Frecon 7,5 Kw Trifaze Frecon Sürücü
Frecon Solar Irrigation System Motor Driver
Easy setup
Easy Operation
Economic Solution
Ability to drive mono phase motor and 3 phase (3P) motor. MPPT embedded program. Auto sleep mode in low sunlight or auto restart mode in high light Level control and many more great features
FRECON Solar Pump System; consists of inverter, solar panels and pump. In addition, if desired, the FRECON GPRS/GSM remote monitoring and control system can be included in this package.
It is designed to run the pump directly in a battery-free system, which can effectively reduce the construction and operating cost and routine maintenance of the Frecon Irrigation system.
Solar pump inverter is a product that operates and controls the pump by converting the DC power produced in the solar panels to AC power.
This inverter can adjust the output frequency according to the solar irradiation intensity in real time to implement MPPT (maximum power point tracking).
Voltage, current, power, frequency and water flow monitoring. Allows the submersible pump to stop automatically when the water runs out.
PV200 and PV100 special inverters are developed for power supplies of water pumps based on the core control arithmetic of FR200 and FR100 vector control converter, specially manufactured with the control requirements of SOLAR PV water pump application.
Automatic switch to SLEEP MODE when there is no water in the well. It has the feature of restarting when water comes out.
Integrated, special DC bus and MPPT software for solar irrigation systems. Submersible pump monitoring
Electromagnetic Compatibility (EMC) Category C1/C2. It can be mounted directly to the panel or rail. For 380V output voltage, the lowest DC input voltage is 250V DC.
Wide voltage range, advanced cooling design, specially designed against corrosion and corrosion. The lowest input voltage for 220v AC output is 120V DC
High power tolerance and identification, low power consumption monitoring and control mode
Power Range
Voltage Range
0.12 kW to 30 kW (1/6 hp up to 40 hp)
220VAC single phase /300～370VDC 0.2 ～2.2kW (Minimum voltage 120 VDC Maximum voltage 400VDC)
380VAC 3 phase /500～700VDC 0.75～30kW (Minimum voltage 250 VDC Maximum voltage 800VDC)
