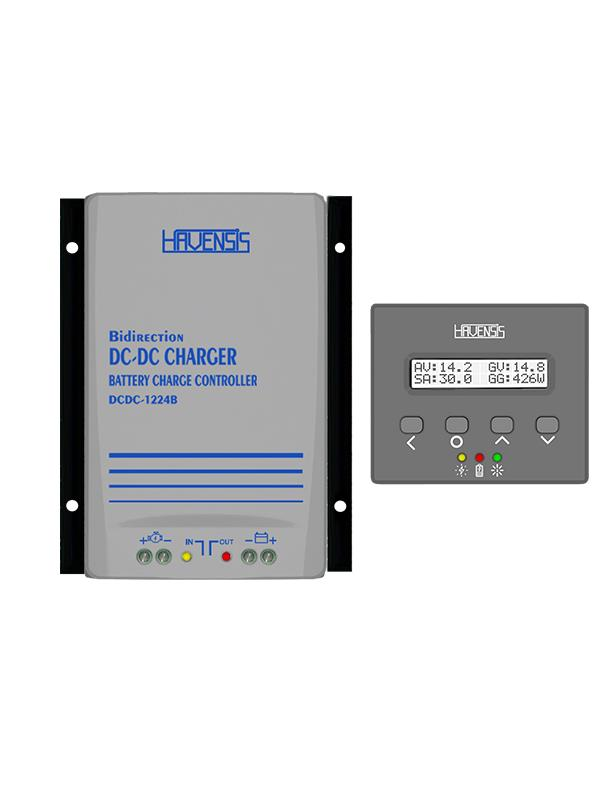

Bidirectional DC-DC Battery Charger
The purpose of this device is to provide full and safe charging of the rear life batteries (JEL-AGM-WOOD-LITHIUM) from the vehicle alternator/starter battery, and to charge the starter battery from the life battery. Thanks to its 3-stage charging function and current limiting feature, it can adjust the battery voltage level and pass a constant current up to 30 amps, regardless of the alternator voltage and current.
In Boost Charge Mode, it can charge the starter battery of the vehicle from the life batteries. It can adjust the battery voltage level and pass a constant current up to 3 amps. In this way, self-discharge of the starter battery is prevented when camping and accommodation for a long time or in vehicles pulled into the parking lot, and it remains fully charged thanks to the device.
Boost Charge Mode
While charging the life batteries of Caravans or Boats with the Solar panel or from the mains, the device transfers the excess energy to the starter battery of the vehicle when the life batteries are full or when it comes to the voltage you set. When the voltage of the life battery drops below the desired value, the device stops making booster charging and does not discharge the life batteries. In this way, both battery groups are safely charged.
The device has a dual-direction current limiting feature while charging.
In boost charging mode, no more than 3Amper current is drawn from your life battery, it does not exceed 3amperes even during cranking and protects your life batteries against excessive discharge current.
All Parameters Programmable
- Battery charging algorithm (configurable)
- Compatible with All Alternators (including Euro5 and Euro6): Engine start/stop auto detect
- 3-stage adaptive charging algorithm: Bulk -Absorption-Float
- For lead acid batteries, it is important to keep the absorption time short to avoid overcharging the battery in low discharge situations. After a deep discharge, the absorption time is automatically increased to allow the battery to be fully recharged.
- The absorption/equilibrium charging time for lithium batteries is fixed and is 2 hours.
- All voltage ranges and current limiting can be set on the display.
- It senses that the engine is running and then starts charging the life batteries and cuts off the charge when the engine stops, not draining/protecting the starter battery.
Display/Control Board Connection
- Device-independent control and adjustment can be made with the screen
- All models are short-circuit proof and can be connected in parallel to increase the output current
- An unlimited number of devices can be connected in parallel.
- High temperature protected
- The output current drops at high ambient temperature.
- screw terminals
- No special tools are required for installation. Installation can be done easily.
- Reverse Connection Input/Output Fuse (Replaceable)
single device
In Charge Mode From Alternator
- Input:12V | Output:12V - 30A
- Input:24V | Output:12V - 30A
- Input:12V | Output:24V - 15A
- Input:24V | Output:24V - 30A
It can work in any function.
In Boost Charge Mode
Life Battery: 12V Starter Battery: 12V - 3A
Life Battery: 24V Starter Battery: 12V - 3A
It can work in any function.
