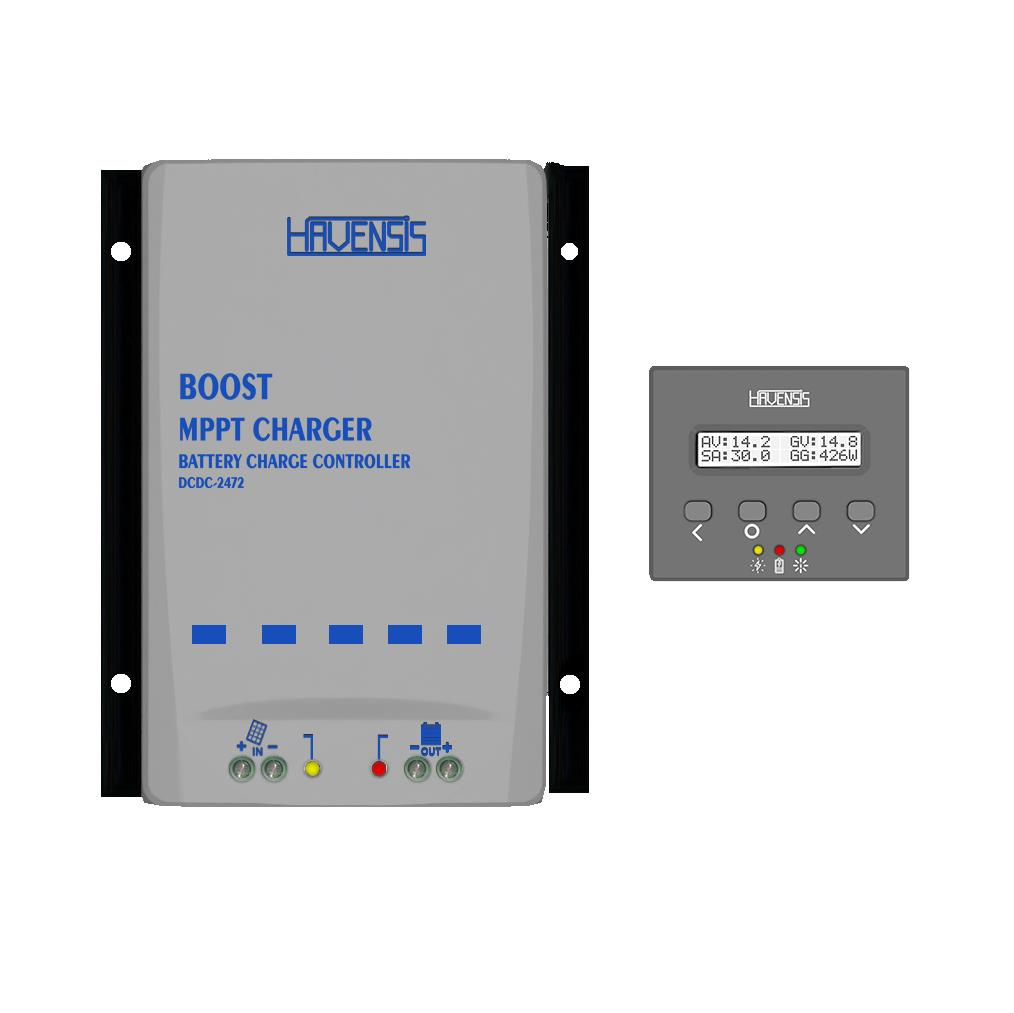

DIGITAL DISPLAY SOLAR CHARGER FOR ELECTRIC BICYCLE BATTERY Mppt Charge Controller

BOOST MPPT 24-72V , with its Boost Converter topology, increases the low voltage at the input and gives it to the output. It allows charging 24/36/48/60/72Volt battery pack from 12Volt or 24Volt single solar panel. It comes to the forefront by transferring almost all of the power produced by the solar panel to the batteries with its MPPT charging system.

You can charge the batteries of Minn Kota and other Electric and Electronic Anchor systems with the solar panel. You can easily charge 36V batteries with the solar panel.

BOOST MPPT, Solar Charge Controller, Specially designed for Electric bicycles and handicapped vehicles. It can be produced in IP68 class. You can charge 4-5 or 6 series-connected Dry, Wet, Gel or Lithium batteries with a single solar panel of any power to be placed on the vehicle.

Made in Turkey.

You can optionally monitor remotely via the BLUETOOTH Module.

It is optionally produced with LCD SCREEN.

Product features

Battery/Battery Rated Voltage: 24V, 36V, 48V, 60V, 72V DC

Solar Panel Input Voltage: 12-40V DC

Solar Panel Input Power (Max): 12V-165W 24V-300W

Output Voltage (Max): 87V DC

Output/Charge Current (Max): 4 Amps

Input Current (Max): 10Amps

MPPT Tracking Efficiency: 99%

DC-DC Converter Efficiency: 96.5%

Operating Temperature: -20……..+60C

Electronic Protections

*Solar Panel Reverse Connection Protection

*Battery Reverse Connection Protection

*Battery High Voltage Protection

*Battery Low Voltage Protection

*Panel Reverse Current Protection (Night)

Usage areas

Electric Bicycle Battery Charger

Small Off-Grid Solar Systems
