CARAVAN SOLAR PACKAGE 1000 WATT CHARGED INVERTER 205W SOLAR PANEL WITH MPPT Caravan Package
indirim
Havale ile ödemerlerde
%2 indirim
Şu an sitemizde 9
ziyaretçi ürünlerimizi incelemektedir.
CARAVAN SOLAR PACKAGE 1000 WATT CHARGED INVERTER 205W SOLAR PANEL WITH MPPT
Package Included
1000 WATT 12 VOLT INVERTER FULL SINUS CHARGED INVERTER (1 Piece)
30 AMPER MPPT SOLAR CHARGING REGULATOR DIGITAL (1 Piece)
200W 205 Watt Monocrystalline Perc Solar Solar Panel (2 Pieces)
12 VOLT 200 AMPER CARBON GEL BATTERY DEEP CYCLE DEEP CYCLE 202 (1 Piece)
Solar cable with connectors between the solar panel and the inverter (1 piece)
Cable Between Battery and Inverter Solar Solar panel (1 unit)
7 Piece Caravan Solar Panel Mounting Set (1 Piece)
1000 WATT 12 VOLT INVERTER FULL SINUS CHARGED INVERTER (1 Piece)
Converts 12V DC to 220 V AC Electricity
to the battery , Can be Connected to Solar Panel
Can Be Used As UPS
1000 WATT AC Power You Get
Our product is guaranteed for 2 years.

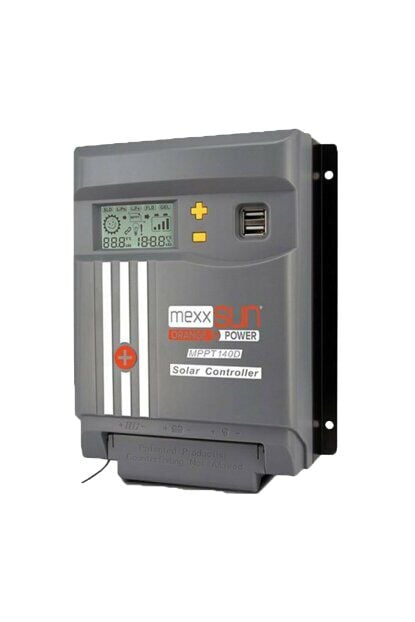

30 AMPER MPPT SOLAR CHARGING REGULATOR DIGITAL (1 Piece)
MPPT type solar charge control unit provides approximately 30% increase in efficiency compared to other charge control systems.
The Turkish equivalent of the word MPPT is 'Maximum Power Point Tracker'. Using the energy obtained in all systems at the maximum level has become possible thanks to these electronic devices. There are different types of MPPTs used in wind turbines and solar systems.
Although there are some technical differences according to the usage areas of MPPTs, the general way of functioning is the same. If we consider solar MPPTs , the angle of incidence of the sun's rays on the earth is constantly changing during the day. Accordingly, since the amount of radiation absorbed by the solar panel (photovoltaic cells) will also change, the energy obtained will be different at each time interval. However, in order for the system to function correctly, an increasing and decreasing irregular power supply cannot be given directly to the load. These power values need to be evolved and made regular and efficient. This is where MPPT comes into play. It starts a series of processes by detecting the moments when the different power values obtained at different time intervals are the greatest. In the microcontroller that contains these processes, through complex algorithms
200W 205 Watt Monocrystalline Perc Solar Solar Panel (2 Pieces)
Product description
Product code : LXR-205M
Certificates : CE, IEC
Electrical Characteristics
Strength : 205W
Number of Cells : 36
Open Circuit Voltage (Voc) : 23.80V
Max. Voltage (Vmp) : 20,70V
Short Circuit Current (Isc) : 9.99A
Max. Current (Imp) : 9.79A
Max. System Voltage : 1000V
Mechanical Properties
Module Dimensions (mm) : 1510*680*30
Weight : 11.9kg
Standard Test Conditions: Am=1.5 E=1000W/m2 Tc=25℃
12 VOLT 200 AMPER CARBON GEL BATTERY DEEP CYCLE DEEP CYCLE 202 ( 1 Piece )
VOLT: 12V
AMP: 200 AH
WARRANTY: 2 YEARS
LIFE: 10 YEARS (estimate)
SIZE: 52.2*24*21.8CM
KG: 63
Solar cable with connectors between the solar panel and the inverter (1 piece)
Model no: CW-PŞ-SK-605
6mm between panel and charge controller
Black 5 meters - Red 5 meters
SMC connector, other end insulated with ferrule
Cable Between Battery and Inverter Solar Solar panel (1 unit)
Model No: CW-AIBK-10
Black 1 meter - Red 1 meter
A25 shoe, the other end is insulated with frill
7 Piece Caravan Solar Panel Mounting Set (1 Piece)
7pcs/1set UV resistant solar panel ABS mounting kit white corner mount and side for RV
fitting, suitable for boat and caravan use
Feature
Material: ABS, UV resistance
Color: White
50% weight reduction
Compatible with 20 W to 550 W panels
You can add or remove products from the package as you wish, you can check the price of the product you want to remove or add on our page, or you can ask us for the price.
Images are representative
