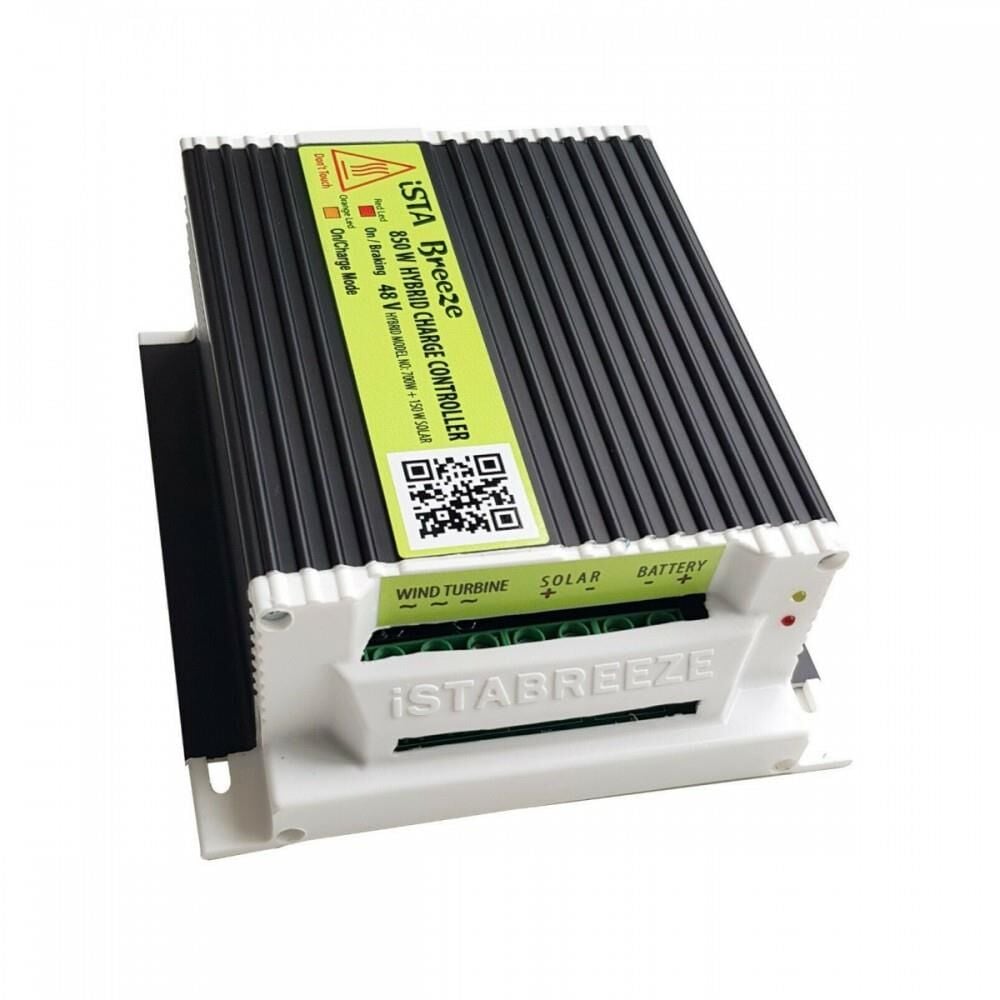

850 WATT 12 V Hibrit Şarj Kontrol Cihazı İSTA-BREEZE
800W 12V Hybrid Charge Controller ISTA-BREEZE
Ista Breeze Hybrid Charge Controller
Extend the life of the Controller with the use of solid state components.
Microprocessor controlled charging with integrated voltage and current limiter.
Electromagnetic brake control, generator automatically brakes with full battery, with modern braking system put your turbine in 3 steps to prevent emergency shutdown of turbine. Increase stator life.
Protection against overcharge, over discharge, short circuit, overload and reverse polarity reverse.
USB port for the possibility of external display.
CHARGER CONTROLLER Nominal Battery Voltage 12-24 VDC (auto) For Wind Turbine Max. Input Power 500W Max. Input Power 300W Maximum Charging Voltage 14.9V (for 12V) //// 25.2 (for 24V) Max. Charging Current 30 Amps min. Battery Voltage 8.5V (for 12V) /// 17.5V (for 24V) Brake Function 16.8V (for 12V) /// 29.6V (for 24V) Built-in Fan None Operating temperature Normal: 20 ~ +55 °C / 35 ~ 85% RH //// Industrial: 30 ~ +55 °C / 35 ~ 85% RH Temperature Compensation -4 mV °C / 2V, -35°C-- //// +80 °C, accuracy: ±1 °C Dimensions (LxWxH) 150x170x70mm Weight 1.3 kg Recommended Battery 100Ah
