CHARGING CONTROLLER CONNECTION ISSUES TO BE CONSIDERED!!!
one. MOUNT THE CHARGER CLOSE TO THE BATTERY AND IN A PLACE THAT IS NOT HOT.
2. INSTALL THE LOAD RESISTOR HORIZONTALLY AWAY FROM THE BATTERY AND CONTROLLER.
3. CONNECT THE + TERMINALS OF THE BATTERY AND CHARGER FIRST, THEN CONNECT THE LOAD RESISTANCE CONNECTION TO LOOD OUTPUTS AND THE 3 PHASE FROM THE LAST TURBINE TO THE INPUT (PH) IN ORDER.
4. CHECK THAT THE TERMINAL CONNECTION SCREWS ARE WELL TIGHTEN.
5. CHECK THAT THE CHARGER INVERTER AND BATTERY PACK ARE AT THE SAME VOLTAGE.
6. TO MANUALLY STOPPING THE TURBINE, YOU CAN USE A SWITCH (63 K AUTOMATIC OR 3X25 OPEN OFF PACK) BETWEEN THE WIND TURBINE AND THE CHARGER, WHEN NEEDED, TO REDUCE THREE PHASE SHORT CIRCUIT.
7. MUST GROUND THE BODY OF THE POLE.
8. THE LENGTH OF THE POLE MAY BE APPROXIMATELY 6-12 METERS.
9. YOU CAN MOUNT THE POLE TIGHTLY WITH ROPES ON 3 SIDES AGAINST JUDGES IN THE WIND.
10. DO NOT DRILL ANYWHERE OF THE DEVICE WHILE THE CHARGER IS CONNECTED TO THE SYSTEM.
CHARGER CONTROLLER IS NOT INCLUDED IN THE PRICE, YOU CAN BUY IT SEPARATELY FROM OUR PAGE.

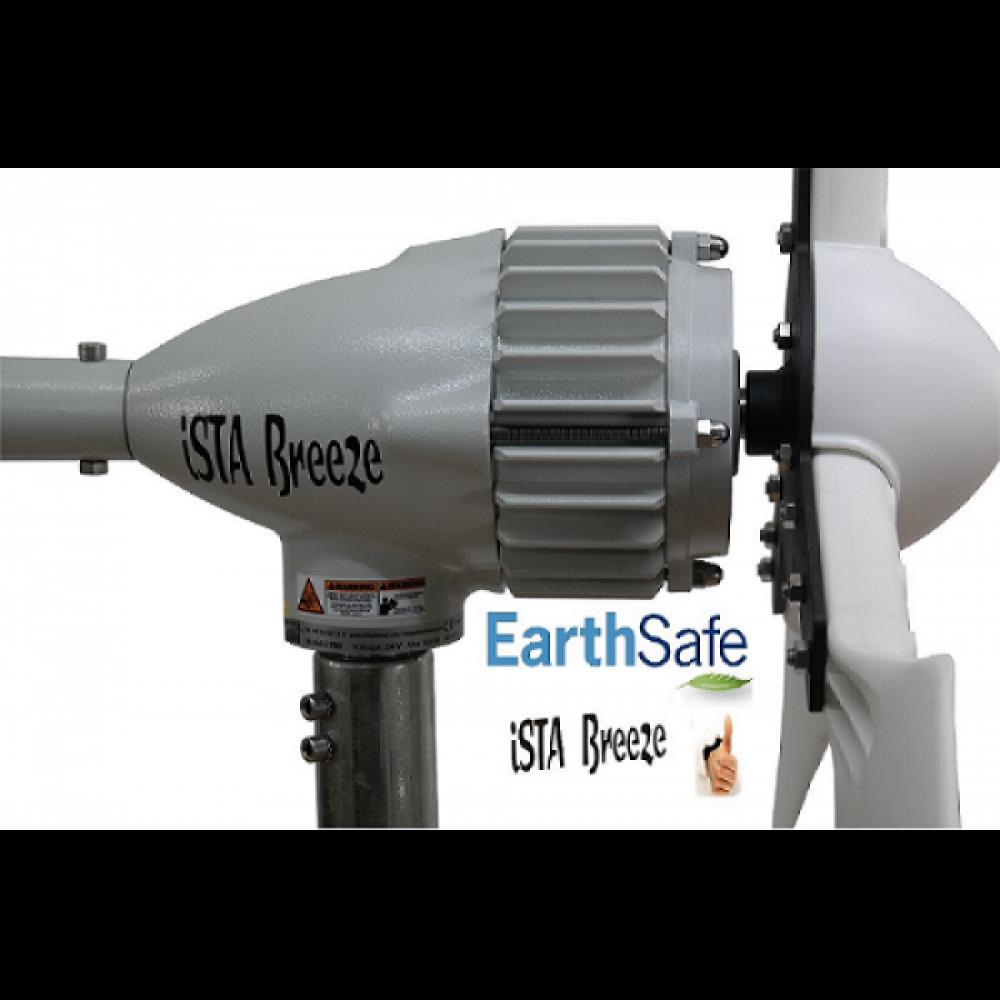

İSTA BREEZE 700 WATT 48 VOLT Wind Turbine İ-700
Rugged Wind Generator Original IstaBreeze® i-700 / 48V
Composite rotor blades are also unusually light, very durable and stable. The enclosure is made of aluminum, which guarantees the best cooling of the generator.
The maintenance-free slip contact (without charcoal) guarantees a good current flow and therefore ensures that the cable is not twisted in the pole.
mounting on pole pipe with cable connection. Required mast pipe nominal diameter: 37mm nominal size!
Other technical data are described in more detail in the description.
You can find matching charge controllers and poles in our store!
iSTA Breeze i-700 12v
The usage area is generally preferred in chalets and summer houses.
It provides charging current even at low wind speeds.
Wings with aerodynamic structure have an unbreakable strong structure.
PRODUCT FEATURES - WIND TURBINE Flow 15 A Evaluated Power 700W Body Support Element Cast and aluminum (painted) Generator Aluminum profile (painted) Voltage 48V (AC) PRODUCT FEATURES WEIGHT 15 Kg WIND SPEED INITIAL WIND SPEED 2m/s OPTIMUM WIND SPEED 12-15 m/s WING FEATURES Weight 621g (1 wing) Material Composite Colour white or black Rotor Diameter 190cm Volume 40db Length 90cm PACKAGE INCLUDED Alternator 1 pc NOSE 1 pc FLANGE 1 pc WINGS 3 pieces User guide 1 pc Mounting Screws 1 set REQUIRED EQUIPMENT BATTERY suitable battery group 48v 60 Ah (4x60 or 4x75) Ah Direct Charge Controller EXTENSION CABLE
