700 WATT 24 VOLT Rüzgar Türbini İ-700 - En İyi Fiyat
CHARGING CONTROLLER CONNECTION ISSUES TO BE CONSIDERED!!!
one. MOUNT THE CHARGER CLOSE TO THE BATTERY AND IN A PLACE THAT IS NOT HOT.
2. INSTALL THE LOAD RESISTOR HORIZONTALLY AWAY FROM THE BATTERY AND CONTROLLER.
3. CONNECT THE + TERMINALS OF THE BATTERY AND CHARGER FIRST, THEN CONNECT THE LOAD RESISTANCE CONNECTION TO LOOD OUTPUTS AND THE 3 PHASE FROM THE LAST TURBINE TO THE INPUT (PH) IN ORDER.
4. CHECK THAT THE TERMINAL CONNECTION SCREWS ARE WELL TIGHTEN.
5. CHECK THAT THE CHARGER INVERTER AND BATTERY PACK ARE AT THE SAME VOLTAGE.
6. TO MANUALLY STOPPING THE TURBINE, YOU CAN USE A SWITCH (63 K AUTOMATIC OR 3X25 OPEN OFF PACK) BETWEEN THE WIND TURBINE AND THE CHARGER, WHEN NEEDED, TO REDUCE THREE PHASE SHORT CIRCUIT.
7. MUST GROUND THE BODY OF THE POLE.
8. THE LENGTH OF THE POLE MAY BE APPROXIMATELY 6-12 METERS.
9. YOU CAN MOUNT THE POLE TIGHTLY WITH ROPES ON 3 SIDES AGAINST JUDGES IN THE WIND.
10. DO NOT DRILL ANYWHERE OF THE DEVICE WHILE THE CHARGER IS CONNECTED TO THE SYSTEM.
CHARGER CONTROLLER IS NOT INCLUDED IN THE PRICE, YOU CAN BUY IT SEPARATELY FROM OUR PAGE.

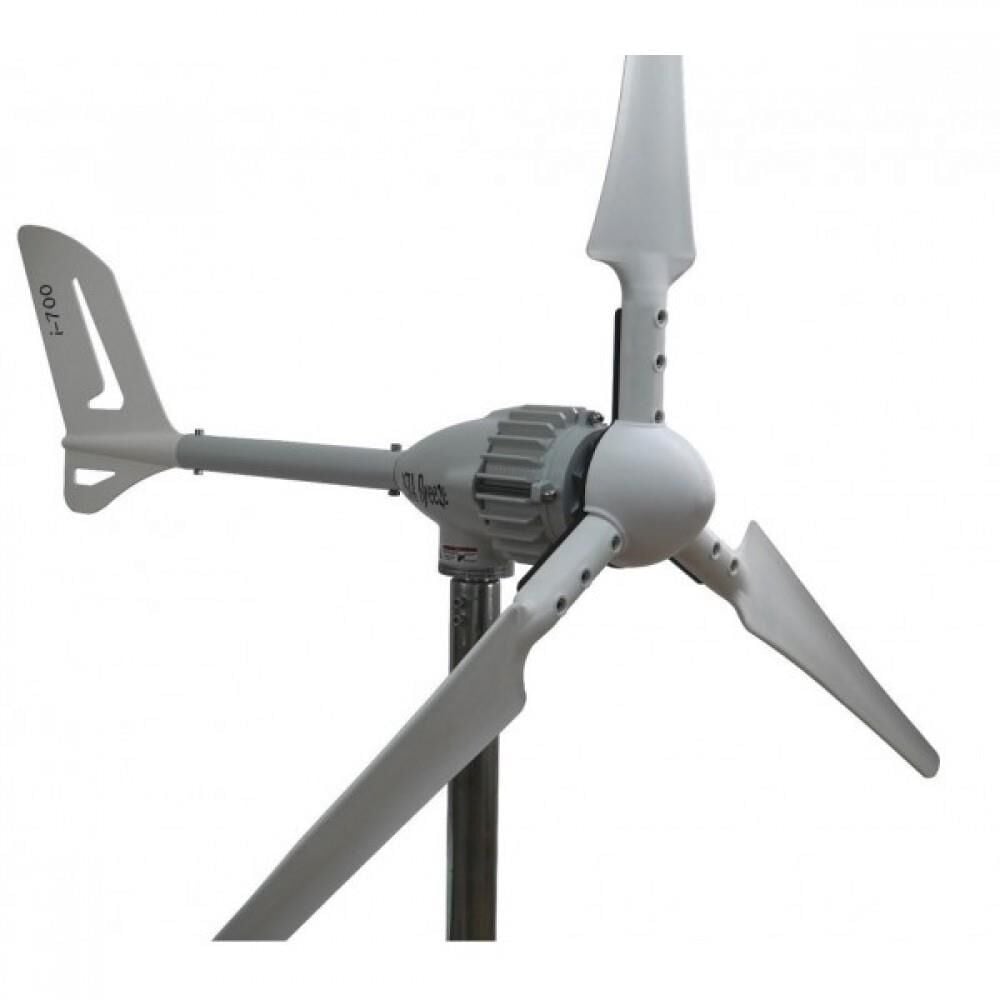

İSTA BREEZE 700 WATT 24 VOLT Wind Turbine İ-700
Robust wind generator The original istabreeze wind turbine, whose composite rotor blades are also unusually light, very durable and stable. The housing is made of aluminum, which guarantees the best cooling of the generator.
The maintenance-free slip contact (without charcoal) guarantees a good current flow and therefore ensures that the cable is not twisted in the pole.
mounting on pole pipe with cable connection. Required mast pipe nominal diameter: 37mm nominal size!
Other technical data are described in more detail in the description.
This product has been successfully used 1000 times around the world!
You can find matching charge controllers and poles in our store!
It can also be used with photovoltaic solar cells with our 24 volt charge controller.
iSTA Breeze i-700 24V
The usage area is generally preferred in chalets and summer houses.
It provides charging current even at low wind speeds.
Wings with aerodynamic structure have an unbreakable strong structure.
PRODUCT FEATURES - WIND TURBINE Flow 30A Evaluated Power 700W Body Support Element Aluminum and casting (painted) Generator Aluminum profile (painted) Voltage 24V (AC) PRODUCT FEATURES WEIGHT 15 Kg WIND SPEED INITIAL WIND SPEED 2m/s OPTIMUM WIND SPEED 12-15 m/s WING FEATURES Weight 621g (1 wing) Material Composite Colour Black or White Rotor Diameter 190cm Volume 40db Length 90cm PACKAGE INCLUDED Alternator 1 pc NOSE 1 pc FLANGE 1 pc WINGS 3 pieces User guide 1 pc Mounting Screws 1 set REQUIRED EQUIPMENT BATTERY suitable battery group 24v 100 Ah (2x100 or 2x150) Direct Charge Controller EXTENSION CABLE
