500W 12V Rüzgar Türbini Air Speed + Hibrit Şarj Kontrol Cihazı
CHARGING CONTROLLER CONNECTION ISSUES TO BE CONSIDERED!!!
one. MOUNT THE CHARGER CLOSE TO THE BATTERY AND IN A PLACE THAT IS NOT HOT.
2. INSTALL THE LOAD RESISTOR HORIZONTALLY AWAY FROM THE BATTERY AND CONTROLLER.
3. CONNECT THE + TERMINALS OF THE BATTERY AND CHARGER FIRST, THEN CONNECT THE LOAD RESISTANCE CONNECTION TO LOOD OUTPUTS AND THE 3 PHASE FROM THE LAST TURBINE TO THE INPUT (PH) IN ORDER.
4. CHECK THAT THE TERMINAL CONNECTION SCREWS ARE WELL TIGHTEN.
5. CHECK THAT THE CHARGER INVERTER AND BATTERY PACK ARE AT THE SAME VOLTAGE.
6. TO MANUALLY STOPPING THE TURBINE, YOU CAN USE A SWITCH (63 K AUTOMATIC OR 3X25 OPEN OFF PACK) BETWEEN THE WIND TURBINE AND THE CHARGER, WHEN NEEDED, TO REDUCE THREE PHASE SHORT CIRCUIT.
7. MUST GROUND THE BODY OF THE POLE.
8. THE LENGTH OF THE POLE MAY BE APPROXIMATELY 6-12 METERS.
9. YOU CAN MOUNT THE POLE TIGHTLY WITH ROPES ON 3 SIDES AGAINST JUDGES IN THE WIND.
10. DO NOT DRILL ANYWHERE OF THE DEVICE WHILE THE CHARGER IS CONNECTED TO THE SYSTEM.

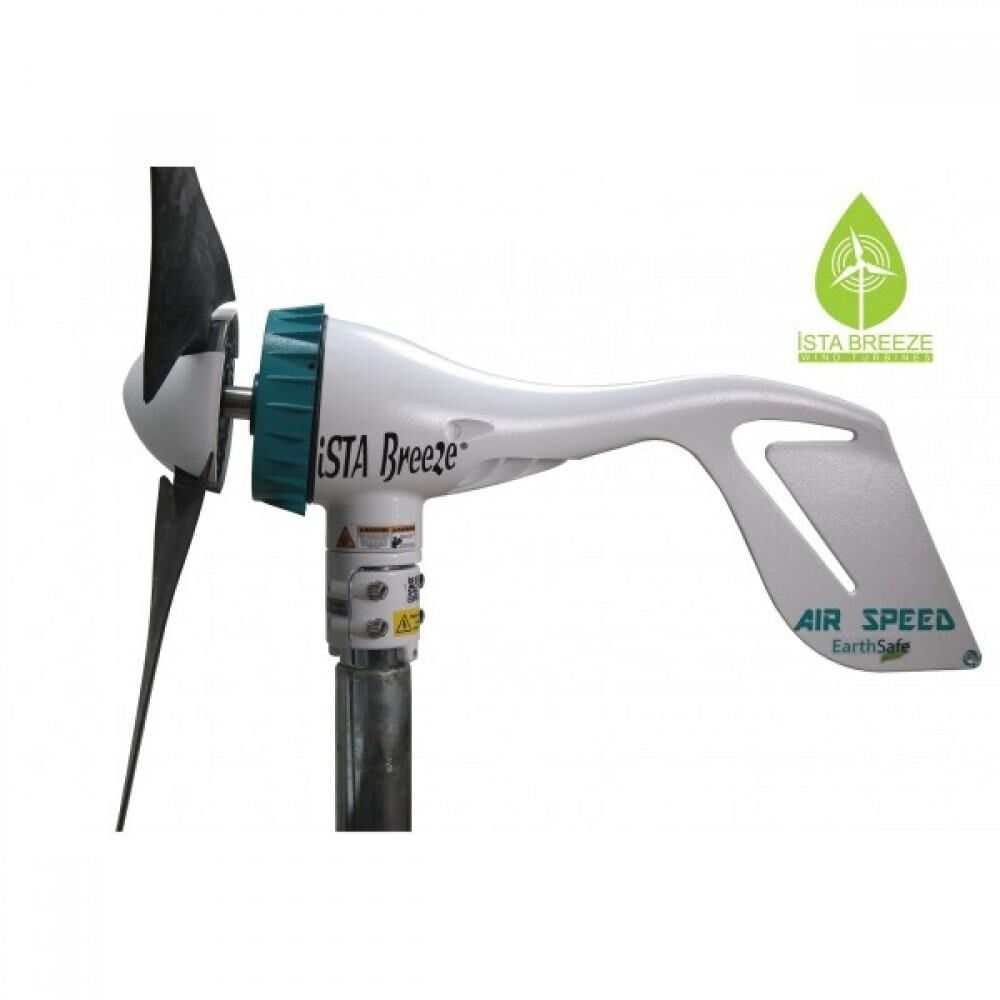

ISTA BREEZE 500W 12V Wind Turbine Air Speed + Hybrid Charge Controller
We are pleased to present the new wind generator IstaBreeze® Air Speed applicable for light, medium and strong wind
The newly developed IstaBreeze® Air Speed is a wind generator for long-term professional use that provides reliable energy automatically and unattended even under harsh conditions with our smart hybrid charge controller developed in Germany.
The generous sizing of the generator components and the newly developed aluminum housing and heat dissipation with the aluminum housing ensure a low thermal load ensuring a long lifetime even at high ambient temperatures.
The generator shaft is powered by two encapsulated and permanently lubricated deep groove ball bearings made of stainless steel. In the front bearing, a special frictionless sealing disc prevents the ingress of moisture and dust.
The fluting of the copper winding is done by hand only. Despite advanced automation on other components of generators, e.g. CNC fabrication, handcrafting is given priority here for good reason. It provides a complete control of the processed insulation materials and thus meets the quality standards of IstaBreeze®.
This range of generators is specially designed for wind and optimally adapted!
The Wind / Solar i-HCC / 800 hybrid charge controller included in IstaBreeze® is an intelligent controller of the wind turbine and solar cells that simultaneously controls you. The high-end device thus controls your island system. It is used to safely and efficiently charge and control your battery with a Wind Generator / Solar Module combination.
With modern appearance, simple operation, built-in protection features, this unit has high efficiency and low load losses. This version of the control unit will significantly increase the life and stability of the entire system, especially the batteries.
Special features:
Use of solid state components. Increasing the lifetime of the controller.
Microprocessor controlled charging with integrated voltage and current limiting.
Electromagnetic brake control, the generator automatically brakes slowly when the battery is full, modern three-step braking system to prevent the turbine from blocking instantly. Increasing the life of the stator.
Protection against overcharge, deep discharge, short circuit, overload and false reverse polarity.
