500 WATT 24 VOLT Rüzgar Türbini İ-500 - En İyi Fiyat
CHARGING CONTROLLER CONNECTION ISSUES TO BE CONSIDERED!!!
one. MOUNT THE CHARGER CLOSE TO THE BATTERY AND IN A PLACE THAT IS NOT HOT.
2. INSTALL THE LOAD RESISTOR HORIZONTALLY AWAY FROM THE BATTERY AND CONTROLLER.
3. CONNECT THE + TERMINALS OF THE BATTERY AND CHARGER FIRST, THEN CONNECT THE LOAD RESISTANCE CONNECTION TO LOOD OUTPUTS AND THE 3 PHASE FROM THE LAST TURBINE TO THE INPUT (PH) IN ORDER.
4. CHECK THAT THE TERMINAL CONNECTION SCREWS ARE WELL TIGHTEN.
5. CHECK THAT THE CHARGER INVERTER AND BATTERY PACK ARE AT THE SAME VOLTAGE.
6. TO MANUALLY STOPPING THE TURBINE, YOU CAN USE A SWITCH (63 K AUTOMATIC OR 3X25 OPEN OFF PACK) BETWEEN THE WIND TURBINE AND THE CHARGER, WHEN NEEDED, TO REDUCE THREE PHASE SHORT CIRCUIT.
7. MUST GROUND THE BODY OF THE POLE.
8. THE LENGTH OF THE POLE MAY BE APPROXIMATELY 6-12 METERS.
9. YOU CAN MOUNT THE POLE TIGHTLY WITH ROPES ON 3 SIDES AGAINST JUDGES IN THE WIND.
10. DO NOT DRILL ANYWHERE OF THE DEVICE WHILE THE CHARGER IS CONNECTED TO THE SYSTEM.
CHARGER CONTROLLER IS NOT INCLUDED IN THE PRICE, YOU CAN BUY IT SEPARATELY FROM OUR PAGE.

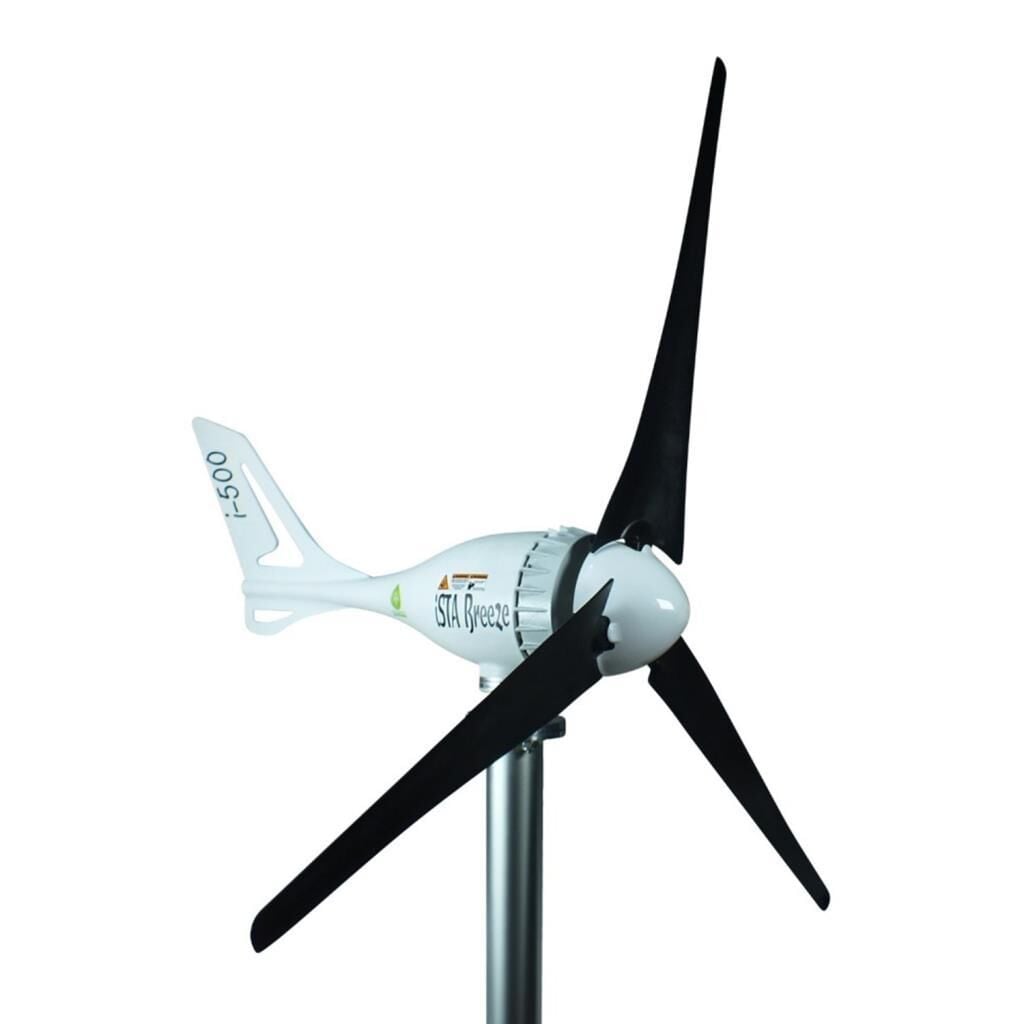

İ-500 24V Wind Turbine İSTA-BREEZE
As a result of our continuous improvement process, we are pleased to introduce the new wind generator i-500 plus. The newly developed IstaBreeze® i-500 plus is a wind generator for professional use that provides reliable energy automatically and unattended even under harsh conditions with our newly developed intelligent hybrid charge controller. The heat dissipation over the newly developed aluminum alternator provides a low thermal load, which ensures long-lasting use even at high ambient temperatures. The generator shaft is powered by two encapsulated and permanently lubricated deep groove ball bearings made of stainless steel. In the front bearing, a special frictionless sealing disc prevents the ingress of moisture and dust. Our product is made of aluminum, stainless and composite materials, so there is no rusting problem, it can be used safely in all places.
PRODUCT FEATURES - WIND TURBINE Alternator Body ALUMINUM PRODUCT FEATURES WEIGHT 5 kg DECIBEL 40dB DIRECT NO BODY MATERIAL COMPOSITE WIND SPEED INITIAL WIND SPEED 2m/S OPTIMUM WIND SPEED 17-20 m/s STRENGTH AMPERE 20 amp MAXIMUM POWER 450W AVERAGE POWER 400W VOLTAGE 24V-AC WING FEATURES WEIGHT 180g WIDTH 13cm(4.6in) MATERIAL COMPOSITE ROTOR DIAMETER 103cm LENGTH 50cm PACKAGE INCLUDED CONNECTION SCREWS 1 set NOSE 1 pc FLANGE 1 pc BODY 1 pc WINGS 3 pieces User guide 1 pc REQUIRED EQUIPMENT BATTERY Suitable battery group 24v 75 Ah (2x75 or 2x100) Ah
