500 WATT 24 VOLT Rüzgar Türbini - Air Speed
CHARGING CONTROLLER CONNECTION ISSUES TO BE CONSIDERED!!!
one. MOUNT THE CHARGER CLOSE TO THE BATTERY AND IN A PLACE THAT IS NOT HOT.
2. INSTALL THE LOAD RESISTOR HORIZONTALLY AWAY FROM THE BATTERY AND CONTROLLER.
3. CONNECT THE + TERMINALS OF THE BATTERY AND CHARGER FIRST, THEN CONNECT THE LOAD RESISTANCE CONNECTION TO LOOD OUTPUTS AND THE 3 PHASE FROM THE LAST TURBINE TO THE INPUT (PH) IN ORDER.
4. CHECK THAT THE TERMINAL CONNECTION SCREWS ARE WELL TIGHTEN.
5. CHECK THAT THE CHARGER INVERTER AND BATTERY PACK ARE AT THE SAME VOLTAGE.
6. TO MANUALLY STOPPING THE TURBINE, YOU CAN USE A SWITCH (63 K AUTOMATIC OR 3X25 OPEN OFF PACK) BETWEEN THE WIND TURBINE AND THE CHARGER, WHEN NEEDED, TO REDUCE THREE PHASE SHORT CIRCUIT.
7. MUST GROUND THE BODY OF THE POLE.
8. THE LENGTH OF THE POLE MAY BE APPROXIMATELY 6-12 METERS.
9. YOU CAN MOUNT THE POLE TIGHTLY WITH ROPES ON 3 SIDES AGAINST JUDGES IN THE WIND.
10. DO NOT DRILL ANYWHERE OF THE DEVICE WHILE THE CHARGER IS CONNECTED TO THE SYSTEM.
CHARGER CONTROLLER IS NOT INCLUDED IN THE PRICE, YOU CAN BUY IT SEPARATELY FROM OUR PAGE.
CHARGER CONTROLLER IS NOT INCLUDED IN THE PRICE, YOU CAN BUY IT SEPARATELY FROM OUR PAGE.

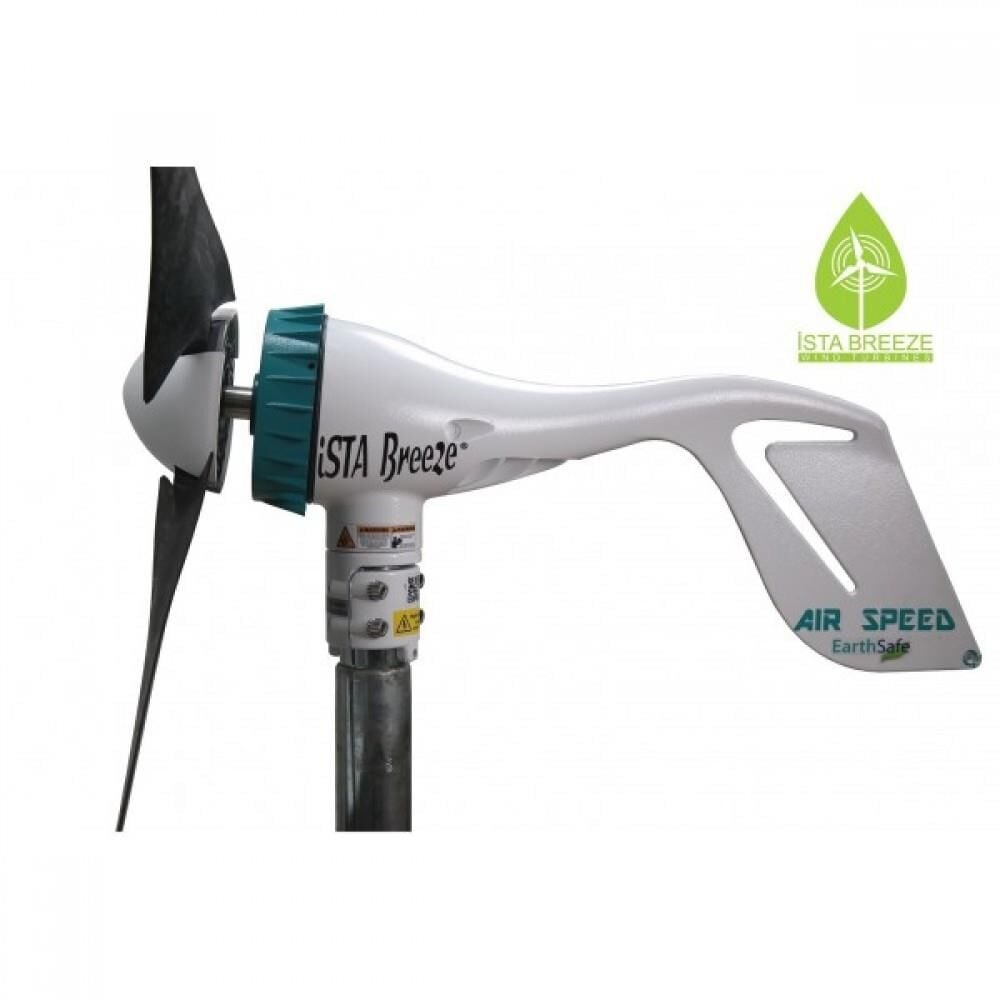

Air Speed 24V Wind Turbine ISTA-BREEZE
We are pleased to present the new wind generator IstaBreeze® AIR Speed, which is universally applicable for light, medium and strong wind The newly developed IstaBreeze® AIR Speed, with our intelligent hybrid charge controller developed in Germany, automatically and unattended, providing reliable energy even in harsh conditions, It is a wind generator for long-term professional use. The generous sizing of the generator components and the newly developed aluminum housing and heat dissipation with the aluminum housing provide a low thermal load ensuring a long life even at high ambient temperatures.
The generator shaft is powered by two encapsulated and permanently lubricated deep groove ball bearings made of stainless steel. In the front bearing, a special frictionless sealing disc prevents the ingress of moisture and dust. The fluting of the copper winding is done by hand only. Despite advanced automation on other components of generators, e.g. CNC fabrication, handcrafting is given priority here for good reason.
It provides a complete inspection of the processed insulation materials and thus meets the quality standards of IstaBreeze®. The range of these generators is specially designed for strong wind areas and is optimally adapted! Our product is made of aluminum, stainless and composite materials, so there is no rusting problem, it can be used safely in all places.
| PRODUCT FEATURES | |
| WEIGHT | 6.5 Kg |
| DECIBEL | 40dB |
| DIRECT | None |
| BODY MATERIAL | Aluminum |
| COLOUR | White black |
| WIND SPEED | |
| INITIAL WIND SPEED | 2m/s |
| OPTIMUM WIND SPEED | 12-15 m/s |
| STRENGTH | |
| AMPERE | 18A |
| MAXIMUM POWER | 500W |
| AVERAGE POWER | 420W |
| VOLTAGE | 24V |
| WING FEATURES | |
| ROTOR DIAMETER | 103cm |
| Wing Length | 50 cm |
| Wing Weight | 180 gr (1 piece) |
| Wing Feature | Composite Products (Carbon) |
| REQUIRED EQUIPMENT | |
| BATTERY | Suitable battery group 24v 75 Ah (2x75 or 2x100) Ah |
